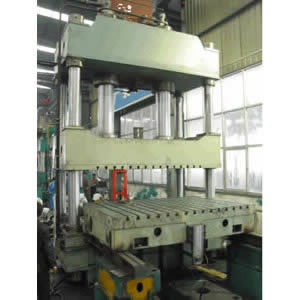

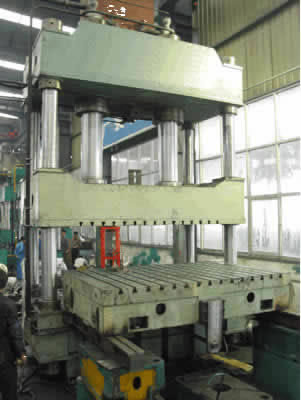

Single Action Hydraulic Press

Single Action Hydraulic Press

Our single action hydraulic press is designed with a computer optimized structure. It has the features of being simple, economical and practical, and is widely used in the petroleum, railway, and other industries.
The frame structure uses the tight tension bar, and the slide uses eight guide rails, with good rigidity and high precision.
The hydraulic control system uses cartridge valve integrative system and fat liquor cooling system, delivering reliable movement, long life, small hydraulic shock, and reduced connecting pipeline for less leaking point.
The independent electrical system with a compact structure is reliable and convenient to maintain. It uses the PLC control, with the adjustment and semi-automatic operating modes.
Through operation kneading board choice, it may realize the constant pressure and fixed range of travel.

Specifications of Single Action Hydraulic Press

Item		Unit	Y27-100	Y27-200	Y27-400	Y27-500	Y27-630	Y27-800	Y27-1000	Y27-1250
Nominal force		kN	1000	2000	4000	5000	6300	8000	10000	12500
Return force		kN	165	450	500	1000	1250	1000	1000	1000
Cushion force		kN	400	400	700	1600	2500	3000	2500	3000
Max. pressure of liquid		MPa	25	25	25	25	25	25	25	25
Slide stroke		mm	600	700	800	700	1000	1200	1100	1000
Cushion stroke		mm	250	250	300	250	450	500	300	450
Daylight opening height		mm	1000	1120	1250	1400	1200	1800	1700	1700
Slide speed	Descent	mm/s	220	100	120	120	160	160	400	200
	Pressing	mm/s	8-15	8-12	10-18	6-10	6-15	10-25	6-15	10-25
	Return	mm/s	120	60	140	80	100	145	300	180
Dimensions of worktable	L-R	mm	720	1000	1200	1400	2400	3000	4000	4500
Dimensions of worktable	F-B	mm	580	900	1200	1400	1600	2000	2000	2500
Cushion area	L-R	mm	450	600	800	1000	1750	2450	3100	3550
Cushion area	F-B	mm	400	600	600	970	1100	1650	1300	2000
Total power		kW	7.5	15	37	37	60	80	90	135
Dimensions of machine	L-R	mm	2160	3500	3990	4400	6400	7500	8000	8500
	F-B	mm	1504	1500	2200	2910	2800	3200	3000	3500
	Height above ground	mm	2950	4200	5340	5550	7200	8500	9000	95

The single action hydraulic stamping press has welded steel frame which is given high temperature tempering treatment to ensure high precision sizes. Meanwhile, the single action hydraulic stamping press is designed with new type of cylinder sealing elements to offer reliable and durable sealing performance.

Technical Specifications of the Single Action Hydraulic Stamping Press

Item		Unit	Y27 -100	Y27 -200	Y27 -250A	Y27 -315	Y27 -315A	Y27 -315H	Y27 -400	Y27 -400A	Y27 -500	Y27 -500A	Y27 -500B	Y27 -500C	Y27 -630	Y27 -800A	Y27 -1000A	Y27 -1250
Nominal force		kN	1000	2000	2500	3150	3150	3150	4000	4000	5000	5000	5000	5000	6300	8000	10000	12500
Return force		kN	165	450	280	630	300	630	500	480	1000	1000	1000	1000	1250	1000	1000	1000
Cushion force		kN	400	400	630	630	1250	630	700	1500	1600	2000	2000	2000	2500	3000	2500	3000
Max. pressure of liquid		MPa	25	25	25	25	25	25	25	25	25	25	25	25	25	25	25	25
Slide stroke		mm	600	700	800	800	800	900	800	900	700	900	1000	1200	1000	1200	1100	1000
Cushion stroke		mm	250	250	300	250	350	500	300	400	250	300	400	400	450	500	300	450
Daylight opening height		mm	1000	1120	1150	1250	1250	1400	1250	1400	1400	1500	1500	1800	1200	1800	1700	1700
Slide speed	Descent	mm/s	220	100	160	100	200	100	120	200	120	200	140	200	160	160	400	200
	Pressing	mm/s	8-15	8-12	10-15	6-10	12-24	6-10	10-18	10-18	6-10	12-25	6-10	12-25	6-15	10-25	6-15	10-25
	Return	mm/s	120	60	130	60	240	60	140	140	80	120	80	120	100	145	300	180
Dimensions of worktable	L-R	mm	720	1000	1250	1250	2500	1600	1200	2500	1400	3000	2200	2800	2400	3000	4000	4500
Dimensions of worktable	F-B	mm	580	900	1120	1120	1600	1300	1200	1500	1400	2000	1400	1700	1600	2000	2000	2500
Cushion area	L-R	mm	450	600	800	800	1700	1450	800	1950	1000	2300	1230	2250	1750	2450	3100	3550
Cushion area	F-B	mm	400	600	600	800	1070	1050	600	1050	970	1300	970	1450	1100	1650	1300	2000
Total power		kW	7.5	15	22	22	37	22	37	37	37	55	37	55	60	80	90	135
Dimensions of machine	L-R	mm	2160	3500	3600	3600	4490	4200	3990	5560	4400	5750	4900	5420	6400	7500	8000	8500
	F-B	mm	1504	1500	1500	1500	2600	2400	2200	2950	2910	3200	2910	2980	2800	3200	3000	3500
	Height above ground	mm	2950	4200	4400	4500	4860	5500	5340	5810	5550	6600	6330	7000	7200	8500	9000	95

Rugao Yaou Company is an experienced manufacturer of oil drilling equipment and hydraulic press. We have attained the certificate of the American Petroleum Institute (API). With many years of experience, we know how to produce reliable and economical petroleum equipment, rolling machines, hydraulic presses and so on. These products are characterized by high quality, stable performance, and long life. Hence, they are in great demand in America, Germany, Russia, India, Singapore, just to name a few.
If you have a need for our products, please let us know. You can contact us by phone, fax, or email.
