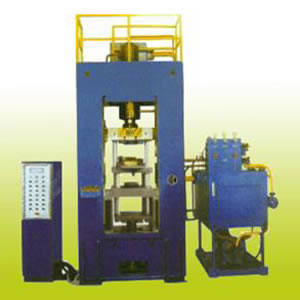

Caking Rare Earth Magnet Hydraulic Press

The caking rare earth magnet hydraulic press guarantees the powder materials will take the wanted shape with a smooth and even surface and density as well. It also has the asynchronous bidirectional suppression (fluctuation to suppress) and the synchronization bidirectional, two ways of suppressing forms. Separately shaping for asymmetrical components and symmetrical components reduces agglutination or distortion enhancing a qualified surface. The caking rare earth magnetic hydraulic press can control the position protection and suppressed ways, ensuring the product volume and uniformity.

The caking rare earth magnet press hydraulic system uses cartridge valve blocks, water cooling system, and reliable hose connection, which guarantees the stable and reliable movement and few leakage points. Meanwhile, its oil pump helps reduce energy consumption.

The caking rare earth magnet hydraulic press has an imported PLC control system and time relay control system. It offers different material pressing methods to suit customers' varied demands. This hydraulic press series is suitable for shaping and reshaping magnetic materials, ceramics or hard alloy.

Optional configurations of the caking rare earth magnet hydraulic press include touch screen display monitor, displacement pressure transmitter, automatic feeding equipment, and more.

Technical specifications of the Caking Rare Earth Magnet Hydraulic Press

Item		Unit	Y72-25	Y72-40	Y72-63	Y72-100	Y72-200
Nominal force		kN	250	400	630	1000	2000
Return force		kN	160	280	400	570	450
Max. Slide stroke		mm	350	350	350	450	500
Returns the strength		kN	250	280	400	660	1000
Drawing of patterns strength		kN	160	280	400	570	850
Max. stroke of knock-out		mm	150	150	160	200	250
Daylight		mm	900	1100	1200	1300	1600
Table area (L-R × F-B)		mm2	480×460	480×460	600×600	700×580	900×900
Next central cylinder	Stretches out the strength	kN	30	30	60	60	80
Next central cylinder	Returns the strength	kN	10	10	35	35	50
Slide speed	Fast under line	mm/s	120	120	220	220	100
	Under idling speed line	mm/s	40	25	24	24	12
	Fluctuation suppression	mm/s	30	20	20	20	10
	Return trip	mm/s	75	100	140	90	70
Slide block speed	Goes against	mm/s	75	48	35	40	45
	Fluctuation (suppression)	mm/s	15	10	10	10	5
	Returns	mm/s	40	48	35	40	45
Total power		kW	7.5	11	11	11	22
Work frequency		mm/s	3-12	3-12	3-12	3-10	3-8
Feeder	Feeding area (L-R × F-B)	mm2	80×80	110×70	110×110	140×150	180×200
Feeder	Feeding traveling schedule	mm	150	200	200	250	300
Feeds the altitude		mm	90	100	100	150	180
In mold cavity hole diameter		mm	80	100	140	140	250
Machine weight		Kg	2500	3500	8500	10000	13000
