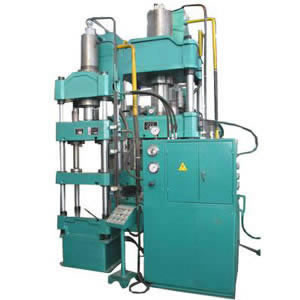

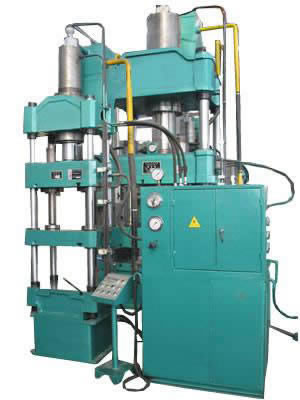

Double Action Hydraulic Press

Double Action Hydraulic Press

Double Action Hydraulic Press

The double action hydraulic press may use four columns or the portal frame construction, which is simple, economical, and practical. The frame posture tension bar pre-tight structure is of high precision and good rigidity. The guidance precision is guaranteed due to the adoption of eight guide rails.
The hydraulic control uses cartridge valve integrative system, the fat liquor secondary filter installation and the water cooling installation. This ensures reliable movement and reduces the leaking point. The imported material cylinder seal parts are used for long service life.
The press is of PLC control. It can realize the constant pressure and decide the regulation, with high working speed and production efficiency.

Specifications of Double Action Hydraulic Press

Item Unit Y28-
100/160
Y28-
200/300
Y28-
315/400
Y28-
400/630
Y28-
500/800
Y28-
630/1030
Nominal force kN 1600 3000 4000 6300 8000 10300
Drawing force kN 1000 2000 3150 4000 5000 6300
Ejector force kN 350 400 630 1000 100 1250
Blank-holding force kN 600 800 800 2300 3000 4000
Max. pressure of liquid MPa 25 25 25 25 25 25
Max. slide stroke mm 630 800 800 1000 1000 1300
Max. daylight of blank holding slide mm 350 400 300 900 1000 1200
Max. stroke of knock out mm 250 350 350 300 350 400
Stroke of drawing slide mm 1350 1550 1400 1700 1800 2200
Daylight of blank holding slide mm 620 850 800 900 900 1200
Slide speed Quick under mm/s 100 100 100 200 200 200
Slow under mm/s 12 25 20 30 30 25
Stretch mm/s 7-12 15-25 10-20 10-30 10-25 10-25
Return mm/s 60 140 100 140 110 130
Cushion area(may elect) L-R mm 1600 1600 2300
F-B mm 1180 1180 1500
Dimensions of worktable L-R mm 780 1000 1250 2500 2500 3200
F-B mm 780 900 1120 1800 1800 2200
Total power kW 11 37 37 62.5 62.5 86

The double action hydraulic drawing press is also designed with a touch screen monitor for user's convenience. It is commonly used in automobile, aviation, astronautics and ship building industries.

Technical Specifications of the Double Action Hydraulic Drawing Press

Item Unit Y28- 63/100 Y28- 100/160 Y28- 100/160A Y28- 200/300 Y28- 315/400 Y28- 400/630 Y28- 500/800 Y28- 630/1030
Nominal force kN 1000 1600 1600 3000 4000 6300 8000 10300
Drawing force kN 630 1000 1000 2000 3150 4000 5000 6300
Ejector force kN 190 350 190 400 630 1000 100 1250
Blank-holding force kN 300 600 600 800 800 2300 3000 4000
Max. pressure of liquid MPa 25 25 25 25 25 25 25 25
Max. slide stroke mm 500 630 630 800 800 1000 1000 1300
Max. daylight of blank holding slide mm 300 350 350 400 300 900 1000 1200
Max. stroke of knock out mm 200 250 250 350 350 300 350 400
Stroke of drawing slide mm 1100 1350 1350 1550 1400 1700 1800 2200
Daylight of blank holding slide mm 700 620 620 850 800 900 900 1200
Slide speed Quick under mm/s 100 100 180 100 100 200 200 200
Slow under mm/s 20 12 20 25 20 30 30 25
Stretch mm/s 10-20 7-12 12-20 15-25 10-20 10-30 10-25 10-25
Return mm/s 100 60 150 140 100 140 110 130
Cushion area(may elect) L-R mm 1600 1600 2300
F-B mm 1180 1180 1500
Dimensions of worktable L-R mm 560 780 780 1000 1250 2500 2500 3200
F-B mm 500 780 780 900 1120 1800 1800 2200
Total power kW 7.5 11 15 37 37 62.5 62.5 86

Rugao Yaou Company is a China double action hydraulic press manufacturer and supplier. Located in Rugao, Jiangsu, we have access to convenient transportation by sea, air and land. To meet different requirements of our customers, we provide a wide range of products, including drill rig parts, oil drilling tools, shearing machines, hydraulic press brakes, and more. Additionally, we also offer OEM service, onsite maintenance, debugging and training services, upon request.
If you are interested in our oil drilling equipment or hydraulic presses, please feel free to contact us for more information!
