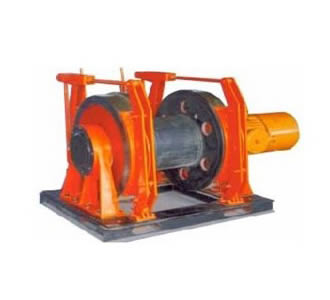

Dispatch Winch
The dispatch winch is flameproof and can be used for mine exploration or transporting materials. Additionally, this product can also be used for dispatching vehicles or hauling heavy object.
The product of JD series is installed with planetary gear drive with the compact structure. This range of product features high efficiency, easy installation, smooth starting, flexible operation, reliable braking and low noise during operation.
The JH series dispatch winch is designed with spherical worm drive. The compact structure and the small size of the machine make it suitable to be integrated with other equipment. The symmetrical structure in the shape of rectangular realizes the easy installation of the product. Due to the smooth and rigid base, this product is quite stable during operation. Additionally, the installation of the anchor on the product is also available to realize the safe, smooth and reliable operation.
Features of JD Series
| Model | JD-1(JD-11.4) | JD-1.6(JD- 25) | JD-2.5(JD-40) | JD- 3(JD-45) |
| Rated Line Pull (kN) | 10 | 16 | 25 | 30 |
| Line Speed (m/s) | 0.43-1.03 | 0.6-1.2 | 1.115-1.632 | 1.115-1.632 |
| Rope Specifications (Dia.×L) | Φ12mm×400m | Φ16mm×400m | Φ20mm×650m | Φ20mm×650m |
| Motor Power (kW) | 11.4 | 25 | 40 | 45 |
| Overall Dimensions (mm) | 1100×765×730 | 1350×1140×1190 | 1900×2350×1370 | 1900×2350×1370 |
| Weight (kg) | 550 | 1460 | 2800 | 2800 |
-
