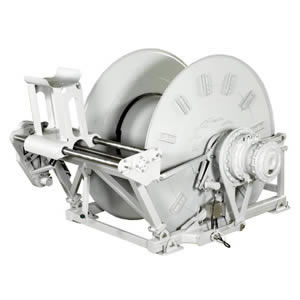

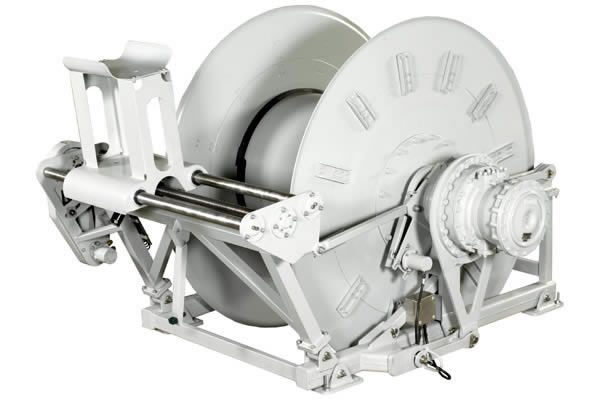

Free Fall Anchor Marine Winch
The free fall anchor marine winch is specially designed for the pile driver or lifting the object on boat. The braking system shall be controlled by hand. Particularly, the drum of this product can be pulled out. This product is manufactured with single drum, clutch and the ratchet pawl as well.
Technical Parameters
| Model | JKL3 | JKL5 | JKL8 | JKL10 |
| Line Pull | 30kN | 50kN | 80kN | 100kN |
| Line Speed | 30m/min | 30m/min | 30m/min | 30m/min |
| Drum Diameter | 320mm | 400mm | 525mm | 550mm |
| Wire Rope Diameters | 18mm | 22mm | 26mm | 30mm |
| Rope Length | 180m | 250m | 350m | 350m |
| Motor Power | 22kW | 37kW | 55kW | 75kW |
| Weight | 1500kg | 3000kg | 5400kg | 7800kg |
