Home » Products » Oil Drilling Tools

Oil Drilling Tools

    1. Drilling Manual Tongs Of Oil Drilling Tools
      Rugao Yaou Company is a professional manufacturer and supplier of drilling manual tongs. We mainly provide two types of manual tongs as follows:
      1. Type Q86-324/75(33/8-123/4 in) drilling manual tong is a vital oil drilling tool used to fasten or remove the screws of drill pipe and casing joint or coupling.
    1. Drill Pipe Slip Of Oil Drilling Tools
      Our drill pipe slips are applicable to drill pipes from 23/8 to 51/2 inch (60.3-139.7mm) O.D. According to gripping length, they are classified into Short (SDS) type, Medium (SDML) type and Extra Long (SDXL) type.
    1. Drill Collar Slip Of Oil Drilling Tools
      Our DCS drill collar slips have three models, which are S, R and L. They can accommodate drill collar from 3 inch (76.2mm) to 14 inch (355.6mm) O.D.
      Rugao Yaou Company is a major drill collar slip manufacturer in China.
    1. Drilling Safety Clamp Of Oil Drilling Tools
      Our safety slips are oil drilling tools that are used to handle flush joint pipes and drill collars. We have two models of drilling safety clamps, which are WA-C and WA-T.
    1. Center Latch Elevator Of Oil Drilling Tools
      DDZ center latch elevators are designed to handle 18° taper shoulder drill pipes, drilling tools and others. DD center latch elevators are hoisting tools used for handling 90° shoulder drill pipes in oil and gas field.
    1. Side Door Elevator Of Oil Drilling Tools
      Our side door elevators are produced according to API Spec 8A-Specification for Drilling and Production Hoisting Equipment. The elevators are hoisting tools designed for handling drill pipe, casing, tubing and drill collar in oil and gas field. ...
    1. Hydraulic Casing Tongs Of Oil Drilling Tools
      Our hydraulic casing tongs are primarily used for making up or breaking out casings or pipes. The casing tongs are fully hydraulic driven. They are configured with a large-torque motor and perform mechanical gear change.
    1. Hydraulic Drill Pipe Tongs Of Oil Drilling Tools
      The hydraulic drill pipe tong marked with II is the power tong supplied with DS suspension device. The hanging height of the power tong can be adjusted by operating the manual control valve in the suspension device.
    1. Spinning Wrench Of Oil Drilling Tools
      A spinning wrench is a good substitute for rotary rope or chain. It is an oil drilling tool used to offer mechanical advantage in applying torque to turn objects. Our spinning wrench is designed and manufactured in accordance with API Spec 7K "Specification for Drilling Equipment".
    1. Drilling Casing Slip Of Oil Drilling Tools
      Rugao Yaou Company is a drilling casing slip manufacturer and supplier in China. Our casing slips can accommodate casing from 65/8 to 30 inch (168.3-762mm) O.D.
      Specifications of Drilling Casing Slip
      Casing O.D. In 9 5/8 10-3/4 11-3/4 13-3/8 16 18-5/8 20 24 26 30
      Mm 224.5 273.1 298.5 339.7 406.4 473.1 508 609.6 660.4 762
      Weight Kg 87 95 112 118 140 167 174 201 220 248
      lb 192 209 247 260 308 367 383 443 486 546

    1. Casing Elevator and Spider Of Oil Drilling Tools
      Slip type casing elevators and spiders are oil drilling tools for handling casing from 41/2 to 14 inch O.D. and with capacities of 350 and 500 tons. Air power operation.
      Casing size (in) 4 1/2, 5, 5 1/2, 6 5/8, 7, 7 5/8, 7 3/4, 8 5/8, 8 3/4, 9 5/8, 9 3/4, 9 7/8, 10 3/4, 10 7/8, 11 3/4, 11 7/8, 13 3/8, 13 1/2, 13 5/8,13 3/4, 14.
      Max .load tons (kN) 350(3150) 500(4500)

    1. Single Joint Elevator Of Oil Drilling Tools
      Our single joint elevators are hoisting tools designed to handle pipes, casing and others in oil and gas field. The elevators are manufactured in accordance with API Spec 8A-Specification for Drilling and Production Hoisting Equipment.
      Specifications of Single Joint Elevator
      Pipe size Max. load
      in mm kN tons
      2 /8-5 3/4 60.3-146.1 35 4
      6-14 152.4-355.6 45 5
      16-36 406.4-914.4 53 6

    1. Drilling Pneumatic Spider Of Oil Drilling Tools
      Our drilling pneumatic spiders are designed to grip drill pipe and tubing in oil well repairing. We provide several models of pneumatic spiders to suit your different requirements.
      Specifications of Drilling Pneumatic Spider
      Model Max load tons (kN) Contact pipe size mm(in)
      QQP/585 60(585) 60.3-88.9(2 3/8-3 1/2)
      QQP/675 759675) 60.3-88.9(2 3/8-3 1/2)
      QQP/900 100(900) 60.3-127(2 3/8-5)
      C Type 80 2 3/8-4 1/2
      CHD Type 120 2 3/8-4 1/2

    1. Roller Kelly Bushing Of Oil Drilling Tools
      Our roller kelly bushings are oil drilling tools designed and manufactured according to API Spec. They are intended to handle 171/2-491/2 inch rotary tables and drive kelly pipes, which can reduce the friction while rotary drilling.
      Specifications of Roller Kelly Bushing
      Model Type Way of drive Suitable for kelly
      Square (in) Hex (in)
      HDS Heavy Square drive 3-6 3-6
      27-HDP Pin drive 3-6 3-6
      20-HDP Pin drive 3-6 3-6
      PTM4 Medium Square drive 2 1/2-5 1/4 3-4 1/4
      20-MDP Pin drive 2 1/2-4 1/4 3-4 1/4
      17-MDP Pin drive 2 1/2-4 1/4 3-4 1/4
      RTS4 Light-duty Square drive 2 1/2-4 1/4 3-4 1/4

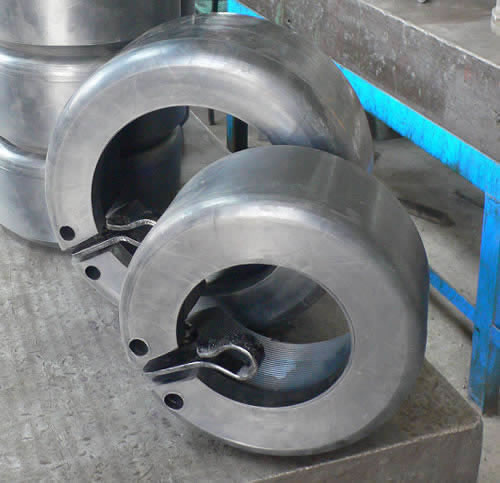

    1. Thread Protector Of Oil Drilling Tools
      Our quick-operating thread protector is a manually-operated device used for protecting external pin-end threads on casing. It has the features of being simple, tough and secure, with a long life. The fast and easy operation of our thread protector can greatly save casing screw time, rig time and your money.
      Specifications of Thread Protector
      Model Casing Size OD. Length
      KHS128-00 5" 220 130
      KHS140-00 5-1/2" 235 125
      KHS178-00 7" 275 125
      KHS244-00 9-5/8" 335 145
      KHS273-00 10-3/4" 362 115
      KHS339-00 13-3/8" 425 115
      KHS406-00 16" 500 125
      KHS473-00 18-5/8" 565 125

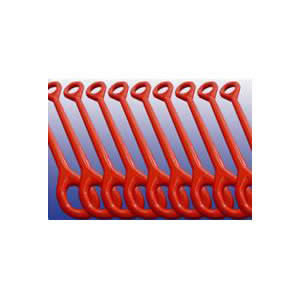

    1. Elevator Link Of Oil Drilling Tools
      The elevator link is manufactured by high-quality alloy steel and adopts swaged forging process. It is an essential lifting tool for oil and gas drilling, workover and oil extraction operations. The elevator link is particular for deep well and super-deep well.
      Our elevator link is API certified. Due to our sophisticated processing, testing and inspection equipment and impressive technology, it has achieved an internationally advanced level. Working capacity: 150tons to 500tons /per pair.
      Specifications of Elevator Link
      Model DH150 DH250 DH350 DH500
      Rated Load-KN(T) 1335(150) 2225(250) 2670(350) 4450(500)
      Length(㎜) 1800 2700 3300 3600

With the rapid development of technology, oil and gas drilling equipment has also been greatly improved in recent years. More drill tools are developed to drill wells and perform excavation activities for the explorations of oil and gas.

Presently, there are many kinds of oil drilling tools on the market, mainly including wellhead drilling tools and downhole drilling tools.
The wellhead tools are devices used to lower or unload drilling tools. They include drilling manual tongs, elevators, slips, and so on.
The downhole drilling tools mainly include drill bits, drill pipes, drill stabilizers, shock absorbers, drilling jars, and so on.

Rugao Yaou Company, as an experienced oil drilling tool manufacturer and supplier in China, has received the certificate of the American Petroleum Institute (API). During the past years, we have established cooperative relationships with more than 300 API certified manufacturers. Presently, we are able to provide a variety of oil drilling tools to customers worldwide, such as drill manual tongs, drill pipe slips, center latch elevators, thread protector, and more. All these products feature reliable quality, great durability and long life. As a result, they are extensively used on many large oilfields worldwide.
Want to place an order? Call us now.

Oil Drilling Equipment
    1. Solid Control Equipment
      Solid control is the process of controlling the buildup of undesirable solids. As an experienced oil drilling equipment manufacturer in China, Rugao Yaou Company can provide a complete line of solid control equipment, including shale shakers, centrifuges, degassers, desanders, sand pumps ...
    1. Well Cement Tools
      Rugao Yaou Company is one of the noted well cement tool manufacturers in China. We have been awarded the certificate of the American Petroleum Institute (API) and have established long-term relationships with more than 300 API certified manufacturers.
