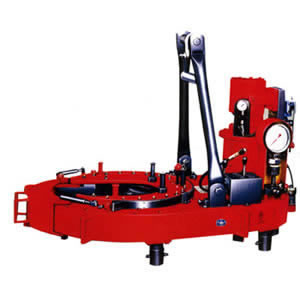

Hydraulic Casing Tong
Hydraulic Casing Tong
Our hydraulic casing tongs are primarily used for making up or breaking out casings or pipes. The casing tongs are fully hydraulic driven. They are configured with a large-torque motor and perform mechanical gear change. Featuring simple structure and safe operation, our casing tongs can be supplied with torque device to complete computer monitoring and managing on pressure, torque and rounds. Our casing tongs, which are produced according to API Spec 7K, have been awarded the National Invention Patent.
Specifications of Hydraulic Casing Tong
| Model | TQ178-16Y | TQ340-35Y | TQ508-70Y | ||
| Size range | mm | 101.6~178 | 114.3~340 | 244.5~508 | |
| in | 4~7 | 4-1/2~13-3/8 | 9-5/8~20 | ||
| Max. pressure | MPa | 18 | 21 | 20 | |
| psi | 2610 | 3045 | 2900 | ||
| Working flow | L/min | 110~160 | 110~170 | 110~170 | |
| gpm | 29.3~42.7 | 29.3~45.4 | 29.3~45.4 | ||
| Max. torque | Hi. gear | kN.m | 2.4~3 | 4.0~5.6 | 8.4~10.7 |
| ft.lbf | 1770~2210 | 2950~4130 | 6190~7890 | ||
| Low gear | kN.m | 15~18 | 26~35.2 | 48.9~70.5 | |
| ft.lbf | 11060~13270 | 19175~25960 | 37244~52000 | ||
| Speed | High gear | rpm | 54~79 | 57~95 | 26~43.6 |
| Low gear | rpm | 9~13 | 9~15 | 4~6.6 | |
| Size | mm | 1500×760×780 | 1580×900×860 | 2080×1280×760 | |
| Weight | kg | 560 | 760 | 1550 | |
Rugao Yaou Company is a manufacturer and supplier of hydraulic casing tongs. In addition to oil drilling tools, we also produce drill bits, wellhead control equipment and well cement tools to suit your various needs. Thanks to their reliable quality and competitive prices, our oil drilling equipment is very popular in America, Brazil, Australia, Egypt, Germany, and other countries. Furthermore, we can provide onsite maintenance, debugging, training service, as well as OEM service, upon request.
We look forward to working with you!
-
