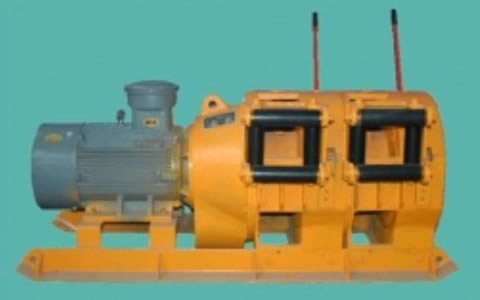

Harrow Winch
The harrow winch is mainly used for exploring the metal mines in the open air on the horizontal working platform with gentle slope.
Technical Parameters
| Model | 2DPJ-7.5 | 2DPJ-15 | 2DPJ-30 | |
| Average Line Pull (kN) | Main Wire Cable | 8 | 14 | 28 |
| Auxiliary Wire Cable | 8 | 10 | 20 | |
| Wire Speed(m/s) | Main Wire Cable | 60 | 66 | 72 |
| Auxiliary Wire Cable | 60 | 90 | 96 | |
| Diameter of Wire Cable (mm) | Main Wire Cable | 9.3 | 12.5 | 15.5 |
| Auxiliary Wire Cable | 9.3 | 11 | 12.5 | |
| Drum Size (mm) | Diameter | 205 | 225 | 280 |
| Flange Diameter | 350 | 435 | 510 | |
| Thickness | 80 | 125 | 160 | |
| Capacity | Main Wound Roll | 45 | 80 | 90 |
| Auxiliary Roll Canister | 45 | 100 | 120 | |
| Motor (kW) | Model | Y132M-4 | Y160L-4 | Y200L-4 |
| Power | 7.5 | 15 | 30 | |
| Total weight (kg) | 420 | 660 | 1155 | |
