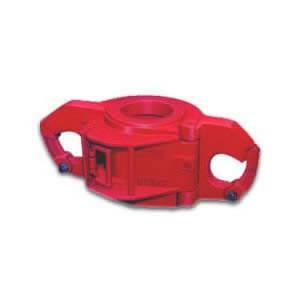

Side Door Elevator

Side Door Elevator

Side Door Elevator

Our side door elevators are produced according to API Spec 8A-Specification for Drilling and Production Hoisting Equipment. The elevators are hoisting tools designed for handling drill pipe, casing, tubing and drill collar in oil and gas field.

Specifications of Side Door Elevator

Type Pipe O.D. Max. Dia. weldless links Max .load
CD in mm mm in kN(tons)
2 3/8-2 7/8 60.3-73.0 69.85 2 3/4 100(900) 150(1350) 200(1800) 250(2250) 350(3150)
3 1/2-4 88.9-101.6 69.85 2 3/4
4 1/2-5 1/2 114.3-127-139.7 69.85 2 3/4
6 5/8-8 5/8 168.3-219.1 88.9 3 1/2
9 5/8-10 3/4 244.5-273.1 88.9 3 1/2
11 3/4-13 3/8 298.5-339.7 88.9 3 1/2
14-16 355.6-406.4 88.9 3 1/2
18 5/8-20 473.1-508 88.9 3 1/2
22-30 558.8-762.0 88.9 3 1/2
CDZ Model Drill pipe size and style Elevator bores Elevator sign Max .load kN(tons)
CDZ67 2 3/8EU 67 2 3/8EU 150(1350) 250(2250) 350(3150)
CDZ83 2 7/8EU 83 2 7/8EU
CDZ101 3 1/2EU 101 3 1/2EU
CDZ109 4 IU 109 4 IU
CDZ121 4 EU 121 4 EU
4 1/2 IU 4 1/2 IU
4 1/2 IEU 4 1/2 IEU
CDZ133 4 1/2 IU 133 4 1/2 IU
5 IEU 5 IEU
CDZ148 5 1/2 IEU 148 5 1/2 IEU

As an experienced side door elevator manufacturer and supplier in China, Rugao Yaou Company has received the certificate of the American Petroleum Institute (API). The quality of our oil drilling tools, solid control equipment, well cement tools, and workover tools are well ensured, so please feel securing in using them.
Thank you for browsing our website! If you have a need for any of our products, please don't hesitate to contact us.
