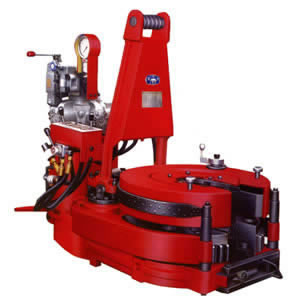

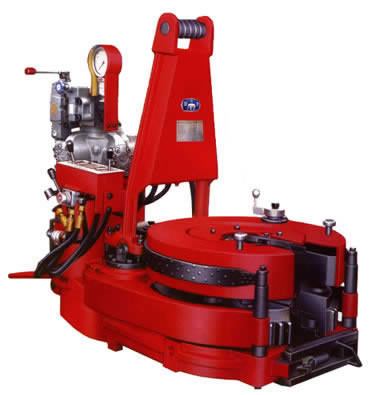

Hydraulic Drill Pipe Tong
Hydraulic Drill Pipe Tong
The hydraulic drill pipe tong marked with II is the power tong supplied with DS suspension device.
The hanging height of the power tong can be adjusted by operating the manual control valve in the suspension device. It has the features of being safe, labor-saving, convenient, and reliable. Our ZQ203-125II hydraulic drill pipe tong is configured with automatic door, and realizes combined control on the clamping of the lower tong, the opening and closing of the door, and the moving of the tong body.
Specifications of Hydraulic Drill Pipe Tong
| Model | ZQ127-25 | ZQ162-50 | ZQ203-100 | ZQ203-125 | |
| Size range | mm | 65-127 | 85-162 | 127-203 | 127-203 |
| Max. torque | kN.m | 25 | 50 | 100 | 125 |
| ft.lbf | 18440 | 36880 | 73750 | 92200 | |
| Speed (High gear) | rpm | 65 | 60 | 40 | 40 |
| Speed (Low gear) | rpm | 10.5 | 4.1 | 2.7 | 2.7 |
| Air pressure | MPa | 0.5-1 | 0.5-1 | 0.5-1 | 0.5-1 |
| Psi | 72-144 | 72-144 | 72-144 | 72-144 | |
| Pressure rating | MPa | 12 | 16 | 16.6 | 20 |
| psi | 1740 | 2320 | 2400 | 2900 | |
| Flow rating | L/min | 120 | 120 | 114 | 114 |
| gpm | 31.7 | 31.7 | 30 | 30 | |
| Shifting distance | mm | 1000 | 1000 | 1500 | 1500 |
| in | 39.4 | 39.4 | 59 | 59 | |
| Lifting distance | mm | 0-440 | 0-440 | 0-430 | 0-430 |
| Size | mm | 1110*735*815 | 1570*800*1370 | 1760*1000*1630 | 1785*1080*16230 |
| Weight | Kg | 750 | 1700 | 2500 | 2750 |
Rugao Yaou Company is a professional hydraulic drill pipe tongs manufacturer and supplier in China. Located in Rugao, Jiangsu, we have access to airports, sea ports, and highways, which allows us to conveniently deliver our products. Our primary products include oil drilling tools, oil production tools, solid control equipment, and more. Featuring stable performance, long life and economical prices, our oil drilling equipment is very popular with customers in many countries, such as Australia, Brazil, India, Egypt, Germany, just to name a few.
Welcome more international customers to cooperate with us.
-
