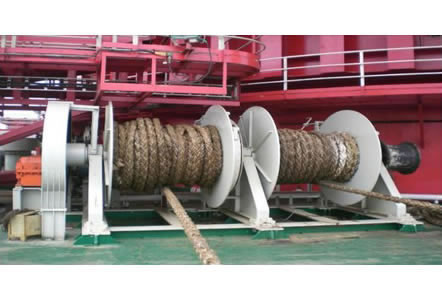

Double Drum Mooring Winch
The double drum mooring winch is a kind of electric or hydraulic product. According to the requirement of the customers, the quantity of the drum can be customized.
The product powered by electricity is applicable for heavy work required big traction. For the product with single drum, the drum is driven by the reducer. The braking system is installed between the motor and the input shaft. The number of the drum of the electric mooring winch can be set up to meet the requirement for hoisting, traction and some others. The maximum rated load of the product powered by electricity is 10 tons.
The rated load of the hydraulic mooring winch is from 10t to 5000t. The high mechanical efficiency and the large torque make it suitable for the applications in different conditions. This product features compact structure, small size, nice appearance, high safety and efficiency, good stability, reliable operation and the low noise.
Technical Parameters
| Series | Rated Line Pull (kN) | Rated Speed (m/min) | Drum Size (Φmm×m) | Braking Force (kN) | Motor Power (kW) | Dimensions(mm) | Weight (ton) | ||
| Length | Width | Height | |||||||
| HWS-20 | 20 | 12 | 15×200 | 60 | 11 | 1800 | 1150 | 1825 | 25 |
| HWS-30 | 30 | 12 | 16×200 | 90 | 15 | 1950 | 1200 | 1900 | 3.0 |
| HWS-50 | 50 | 12 | 22×220 | 150 | 22 | 2050 | 1200 | 2000 | 3.5 |
| HWS-80 | 80 | 12 | 28×220 | 240 | 37 | 2175 | 1250 | 2100 | 4.0 |
| HWS-100 | 100 | 12 | 30×220 | 300 | 45 | 2320 | 1285 | 2175 | 5.0 |
| HWS-125 | 125 | 12 | 32×220 | 375 | 55 | 2385 | 1325 | 2250 | 5.5 |
| HWS-150 | 150 | 12 | 36×220 | 450 | 75 | 2500 | 1465 | 2400 | 6.0 |
| HWS-200 | 200 | 10 | 39.5×350 | 600 | 75 | 2600 | 1670 | 2625 | 9.0 |
| HWS-250 | 250 | 10 | 43×450 | 750 | 90 | 2850 | 1800 | 2900 | 12.5 |
| HWS-320 | 320 | 8 | 47×550 | 960 | 90 | 3050 | 1975 | 3100 | 18.0 |
| HWS-400 | 400 | 8 | 52×600 | 1000 | 110 | 3375 | 2050 | 3400 | 22.0 |
| HWS-500 | 500 | 9 | 56×600 | 750 | 180 | 4750 | 2800 | 3850 | 25.0 |
-
- Free Fall Anchor Marine Winch
The free fall anchor marine winch is specially designed for the pile driver or lifting the object on boat. The braking system shall be controlled by hand. Particularly, the drum of this product can be pulled out. This product is manufactured with single drum, clutch and the ratchet pawl as well.
-
- Electric/Hydraulic Marine Winch
Electric motor or hydraulic motor
Gear driven device
Spooling device
