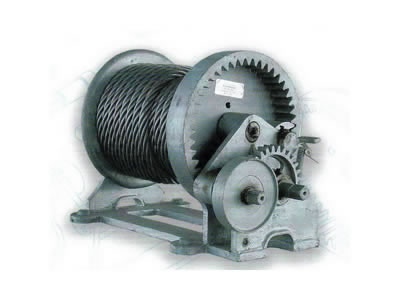

Electric/Hydraulic Marine Winch
The electric/hydraulic marine winch is designed in simple structure. Therefore, the operation of this product is quite easy.
Standard Configurations
Electric motor or hydraulic motor
Gear driven device
Drum
Spooling device
Clutch
Braking system
Exposed gear driving
Warping end
Technical Parameters
| Drum Load(kN) | Rated Speed (m/min) | Holding Load (kN) | Rope Diameter (mm) | Drum Diameter (mm) | Drum Capacity (m) |
| 20 | 12 | 60 | 14 | 300 | 200 |
| 30 | 12 | 90 | 16 | 350 | 200 |
| 50 | 12 | 150 | 22 | 396 | 220 |
| 80 | 12 | 240 | 28 | 504 | 220 |
| 100 | 12 | 300 | 30 | 540 | 220 |
| 125 | 12 | 375 | 32 | 576 | 220 |
| 150 | 12 | 450 | 36 | 648 | 220 |
