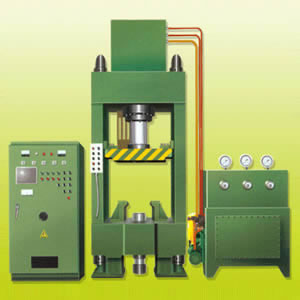

Magnetic Material Hydraulic Press

The magnetic material hydraulic press with an outstanding design is manufactured with exceptional mechanical and electric properties, and is widely used in ferrites plants. It has a multistage speed regulation system, which allows customers to adjust operation speed according to their specific demands.

The magnetic material hydraulic press features high rigidity, low power loss during operation, and stable performance. Equipped with an imported PLC control system and time relay control system, the hydraulic press offers enhanced movement reliability and alarming functions.

To suit customers' varied demands, our magnetic material hydraulic press can be optionally equipped with planet screw type stirring device, medium and high pressure plunger pump, displacement pressure transmitter, touch screen monitor, intelligent degaussing system, to name a few.

Technical Specifications of the Magnetic Material Hydraulic Press

Item		Unit	Y05-100	Y05-200	Y05C-100A	Y05C-100C	Y05C-125	Y05C-125C	Y05C-160	Y05C-200	Y05C-250
Nominal force		kN	1000	2000	1000	1000	1250	1250	1600	2000	2500
Return force		kN	100	480	100	100	125	200	315	240	250
Ejector force		kN	190	1000	190	400	500	1000	630	1000	1250
Returns the strength		kN	100	450	100	280	350	500	350	450	800
Max. pressure of liquid		MPa	25	25	25	25	25	20	25	25	21
Max. slide stroke		mm	500	710	500	500	500	400	600	700	500
Max. stroke of knock-out		mm	150	250	150	200	200	150	200	120	300
Slide to work table maximum range		mm	900	1120	800	1100	100	1240	1050	1250	1700
The work floor is away from the ground level		mm	860	750	860	860	860	750	750	750	900
Slide speed	Under idling line	mm/s	100	100	120	120	100	120	120	60	120
	Under idling speed line	mm/s		1-8	1-5	5-10	1-5	1.5-10	1-8	1-8	1.5-10
	Fast suppression	mm/s				1-5		0.5-5		0.5-5	0.5-4
	Slow suppression	mm/s	1-6	0.05-1	0.1-1	0.05-1	0.1-1	0.03-3	0.05-1	0.05-1	0.05-1
	Return trip	mm/s	60	50	60	140	140	100	100	60	70
Slide block speed	Goes against the speed	mm/s	30	25	30	40	40	20-30	30	25	20
Slide block speed	Returns the speed	mm/s	60	50	60	48	48	30-40	50	50	30
Table area	L -R	mm	720	1000	720	720	1000	1000	1000	1000	1200
Table area	F-B	mm	580	900	580	580	700	800	700	900	1200
Machine area	L-R	mm			3320	3340	3340	3990	3990	3850	3500
Machine area	F-B	mm			1000	1720	1720	1760	1660	1500	3460
Total power		kW	5.5	16.5	5.5	7.5	7.5	7.5	16.5	16.5	7.5
						PCL control, import micro velocity modulation valve	PCL control, import micro velocity modulation valve	PCL control, import micro velocity modulation valve	PCL control, import micro velocity modulation valve	PCL control, import micro velocity modulation valve	PCL control, import micro velocity modulation valve
