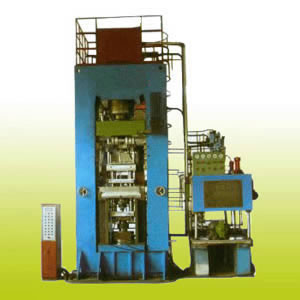

Powder Hydraulic Press

The powder hydraulic press is designed to press powder materials. It ensures that the powder product will take the wanted shape with a smooth and even surface and density as well. It has independent hydraulic and electrical system and automatic material delivering system as well. The electrical system of the powder hydraulic press is PLC controlled, which guarantees simple operation. The hydraulic system of the hydraulic press utilizes cartridge valve blocks, which assures reliable continuous operation. Additionally, the powder hydraulic press uses Button Central Control and is equipped with mechanical stop blocks which ensure the quality consistency of end products.

Technical Specifications of the Powder Hydraulic Press

Item		Unit	Y79-40	Y79-100	Y79-200	Y79-315	Y79-500	Y79-630	Y79-800	Y79-1000
Nominal force		kN	400	1000	2000	3150	5000	6300	8000	10000
Return force		kN	180	165	360	630	1000	850	1200	1300
Max. Slide stroke		mm	350	500	500	600	600	600	700	700
Ejector force		kN	280	400	1000	1000	1500	1500	2000	2000
Returns the strength		kN	180	315	600	1000	1400	1500	2000	2000
Max. Stroke of knock-out		mm	200	250	250	300	350	350	350	350
Max. pressure of liquid		MPa	25	25	25	25	25	25	25	25
Daylight		mm	900	900	1120	1250	1800	2000	2200	2200
Slide speed	Quick under	mm/s	75	150	120	100	120	120	120	120
	Work	mm/s	20	10-20	6-12	5-12	6-15	6-12	6-15	5-12
	Return trip	mm/s	100	120	100	80	60	80	110	110
Slide block speed	Goes against	mm/s	48	60	40	35	40	40	50	50
Slide block speed	Returns	mm/s	75	75	65	35	45	55	50	50
Table area	F-B	mm/s	460	580	900	1120	1400	1200	1500	1500
Table area	L-R	mm	460	720	1000	1250	1400	1320	1500	1500
Machine external dimensions	F-B	mm	1300	1500	1400	1400	2000	2000	2500	2500
	L-R	mm	2040	2660	3100	3200	5750	5820	600	6000
	High above ground	mm	2760	3225	2882	4323	5450	5560	6000	6000
Total power		kW	7.5	7.5	15	22	37	45	74	74
Machine weight		Kg	3500	5000	11500	17000	32000	38000	50000	55000
