C Frame Hydraulic Press

C Frame Hydraulic Press

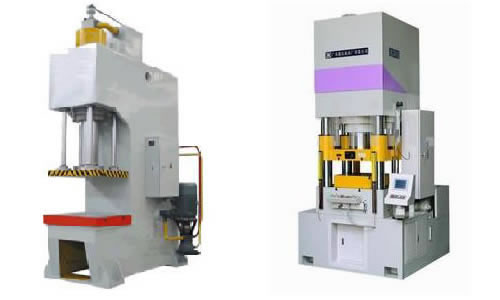

We have two models of C frame hydraulic press for you to choose from, which are YTD30 and the YTD41. After the welding through the tempering aging treatment of metal, the machine body is rigid, reliable and resistant to deformation.
The hydraulic system with artistic design is easy to operate. The oil pump is loaded with the independent filtrating device to ensure the service life of the oil pump and the valve. The slide four guide pillars guidance increases the product precision. The regulation and constant pressure are realized.

Options
Auxiliary work table
Precise school straight system
Photo electricity protective device
Touch type display monitor
The proportion velocity modulation system, hydraulic system
Cooling system
Hits the material installment
PLC programmable foreword control
The bracket hangs

The C-frame hydraulic press is used to stretch metal and make shapes. It is also applicable for processing the nonmetallic material and the powder metallurgic products. It is also utilized for reshaping and cutting edges for axis class components, crafts and other metallic materials. Additionally, the C-frame hydraulic press has an auxiliary worktable and photoelectricity protective device, also a touchscreen monitor and a PLC programmable control system to users' convenience.

Technical Specifications of the Double Action Hydraulic Drawing Press

Item		Unit	Y30-16	Y30-25	Y30-40	Y30-63	Y30-100	Y30-160
Nominal force		kN	160	250	400	630	1000	1600
Ejector force		kN	50	100	100	190	190	250
Daylight opening height		MPa	13	12.5	20	20	25	23
Slide stroke		mm	400	500	400	500	500	500
Stroke of knock-out		mm	100	140	150	200	200	200
Slide to work table maximum range		mm	630	630	600	630	1000	900
The work floor is away from the ground level		mm	705	705	650	700	700	700
Throat depth		mm	250	320	320	320	400	360
Slide speed	Quick under	mm/s	50	50	50	60	80	60
	Work	mm/s	11	11	11	11	8-14	8
	Return trip	mm/s	110	120	110	120	70	120
Table area	L-R	mm	500	510	600	710	700	800
Table area	F-B	mm	450	580	500	600	600	630
Total power		kW	2.2	3	5.5	7.5	11	15

Item		Unit	Y41- 16	Y41- 16A	Y41- 25	Y41- 40B	Y41- 63	Y41- 100	Y41- 160	Y41- 200	Y41- 315	Y41- 500
Nominal force		kN	160	160	250	400	630	1000	1600	2000	3150	5000
Max. pressure of liquid		MPa	13	13	12.5	20	20	25	23	25	25	25
Max. slide stroke		mm	400	350	500	400	500	500	500	400	600	300
Slide to work table maximum range		mm	630	500	630	600	800	1000	900	600	800	400
The work floor is away from the ground level		mm	705	700	705	650	750	700	700	750	800	850
Throat depth		mm	250	250	320	320	320	400	360	380	380	800
Dimension of part dropping hole		mm	100	100	100	100	100	100	100	150	150	250
Slide speed	Quick under	mm/s	50	60	60	50	60	80	60	18	28	80
	Work	mm/s	11	11	11	11	11	8-14	8	8-18	8-28	3-7
	Return trip	mm/s	110	120	120	110	120	70	120	60	150	60
Table area	L-R	mm	500	500	510	600	710	700	800	900	1000	1200
Table area	F-B	mm	450	450	580	500	600	600	630	720	720	1200
Total power		kW	2.2	2.2	3	5.5	7.5	11	15	15	30	37

As a reliable C frame hydraulic press manufacturer and supplier in China, we not only produce metal processing equipment such as shearing machines, rolling machines, and hydraulic presses, but also manufacture petroleum equipment like oil drilling tools, solid control equipment, and more. Featuring reliable quality, stable performance and reasonable prices, our products are in sought after by customers around the world.
Welcome to do business with Rugao Yaou Company!
