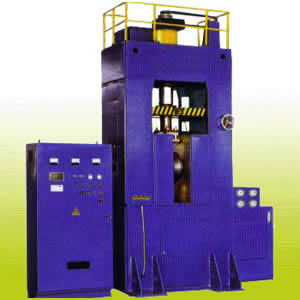

Rare Earth Magnet Hydraulic Press

YTD72P series rare earth magnet hydraulic press uses the PLC control technology to ensure safe and simple operation. Its hydraulic transmission and its union type of drive guarantees the repetition pointing accuracy for material density and high uniformity. Its sealing system is available according to user's request.

The rare earth magnet hydraulic press has a permanent bidirectional hydraulic pressing system. It has a simple structure mold with a convenience replacement and it has an advanced silicon-controlled rectifier. It can have vertical or horizontal magnetic field orientation. It has a copper pipe water cooling system making its work continuous and steady. Additionally, the rare earth magnet hydraulic press has output voltage 0-500V and it has protection against electric current fluctuation.

Parameters of the Rare Earth Magnet Hydraulic Press

Project	Unit	Specification
		CT-220	CT-250	CT-300	CT-360	CT-400
Terminal post diameter	mm	φ220	φ250	φ300	φ360	φ400
Restrains the diameter extremely	mm	φ150	φ150	φ250	φ280	φ320
Pole face adjustment spacing	mm	4-100	4-180	40-200	40-200	40-200
Magnetic field strength	T	Air gap 50H≥2.0	Air gap 50H≥2.1	Air gap 50H≥2
Maximum inter-electrode distance	mm	100	180	200
Coolant conditions			Water cooling

Technical Specifications of the Rare Earth Magnet Hydraulic Press

Item			Unit	Y72P(F)-25	Y72P-40	Y72P(F)-63	Y72P(F)-100	Y72P-200
Nominal force			kN	250	400	630	1000	2000
Return force			kN	120/130	180	165	270/315	480
Ejector force			kN	250	280	530/630	315/630	600
Returns the strength			kN	180/125	180	330/400	500/400	1000
Max. pressure of liquid			MPa	21	25	252	25	25
Max. Slide stroke			mm	350	350	400	500	600
Max. Stroke of knock-out			mm	350/200	200	300/400	370/300	500
Slide speed	Fast under line		mm/s	90/100	50	150/90	100/80	90
	Under idling speed line		mm/s	46/35	20 May move	20 May move/30	10/25	18
	Bidirectional suppression		mm/s	46/5-15	10-18	10/18	6-10	10-18
	Return trip		mm/s	95/80	90	80/115	80/90	80
Next piston running rate	Goes against		mm/s	36/35	28	23	24	28
	Bidirectional suppression		mm/s	23/5-15	5-9	5-9	3-5	5-9
	Returns		mm/s	50/80	47	37/45	40/50	40
Table area	L-R		mm	540/720	500	630/800	800/720	1200
Table area	F-B		mm	720/540	540	720/800	800/580	1200
Slide to work floor maximum range			mm	1800	870	1100/1300	1740/1100	2475
Machine external dimensions		L-R	mm	3000	1700	3265/2700	3200/2600	3800
		F-B	mm	1200	2000	1460/1200	2400/1800	2600
		Height above floor	mm	4080/3640	2905	3950/4620	4500/4100	5200
Total power			kW	11	11	11/15	11/7.5	15
