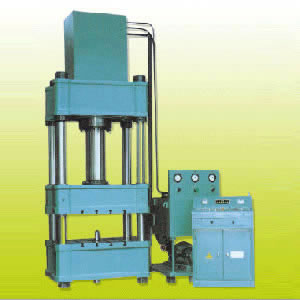

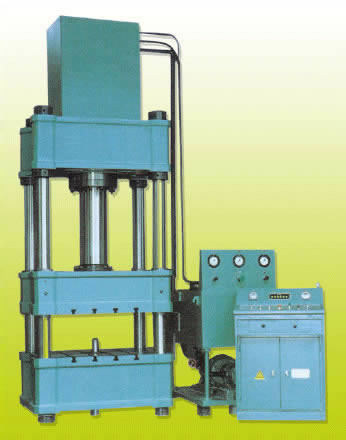

4 Column Hydraulic Press

4 Column Hydraulic Press

4 Column Hydraulic Press

This hydraulic press is suitable for pressing process of plastic material, like stamping, bending, flanging, stretching and so on. It can also be used for adjusting, press mounting, as well as forming of plastic products and powder products.
This machine has independent actuating unit and electrical system. Adopting the button centralized control, our 4 column hydraulic press can realize the adjustment, manual and the semiautomatic operating modes.
The hydraulic press can realize constant pressure and fixed travel range, with time delay function to ensure the pressure. The working pressure, speed and distance of travel can be adjusted within the specified range.

Specifications of 4 Column Hydraulic Press

Item Unit Y32-40 Y32-100 Y32-200 Y32-315 Y32-400 Y32- 500 Y32- 800 Y32- 1000 Y32- 1600 Y32 -2000
Nominal force kN 400 1000 2000 3150 4000 5000 8000 10000 16000 20000
Return force kN 180 315 450 630 500 1000 1200 1300 2000 2600
Ejector force kN 100 190 400 630 630 1000 1000 1000 2000 2000
Max. pressure of liquid MPa 25 25 25 25 25 25 25 25 25 25
Max. slide stroke mm 450 600 700 800 800 900 900 900 900 1000
Max. stroke of knock out mm 150 200 250 250 300 350 350 350 450 300
Slide to work table maximum range mm 700 900 1100 1250 1300 1500 1500 1500 1600 2500
Slide speed Quick under mm/s 40 22 100 100 120 120 120 120 120 120
Slow under mm/s 8-20 6-14 6-12 6-12 5-12 6-15 5-12 6-10 4-8 4-10
Return trip mm/s 52 47 60 60 80 110 100 150 120 70
Slide block speed Goes against mm 95 70 65 55 80 140 140 100 100 55
Returns mm 120 140 95 110 160 150 150 200 200 110
Table area L-R mm 460 720 1000 1250 1400 1500 1500 2500 2000 1200
F-B mm 460 580 900 1120 1400 1500 1500 1800 2000 1200
Overall dimensions L-R mm 1385 2160 2825 3200 4060 5100 4900 5800 8000 3200
F-B mm 920 1504 2060 2100 3525 4200 3400 4000 3000 2100
Total power kW 5.5 7.5 15 22 22 37 74 74 90 100

The 4-column hydraulic press has optimized structure design. Its hydraulic system utilizes cartridge valve blocks and offers reliable performance and long service life. With low impact force from its hydraulic system, the 4-column hydraulic press features few leakage points and connection pipeline. Meanwhile, the hydraulic press is designed with independent electrical circuit control system, which ensures convenient maintenance and reliable performance. Additionally, the 4-column hydraulic press utilizes central button control system and has two different operation modes for customers to choose from.

Technical Specifications of the Column Hydraulic Press

Item Unit Y32- 40 Y32- 63 Y32- 100 Y32- 100A Y32- 160 Y32- 200 Y32- 200A Y32- 315 Y32- 315A Y32- 400
Nominal force kN 400 630 1000 1000 1600 2000 2000 3150 3150 4000
Return force kN 180 135 315 165 200 450 240 630 300 500
Ejector force kN 100 100 190 190 240 400 400 630 630 630
Max. pressure of liquid MPa 25 25 25 25 25 25 25 25 25 25
Max. slide stroke mm 450 500 600 600 700 700 700 800 800 800
Max. stroke of knock-out mm 150 150 200 200 200 250 250 250 250 300
Slide to work table maximum range mm 700 800 900 900 1050 1100 1100 1250 1250 1300
Slide speed Quick under mm/s 40 100 22 160 160 100 200 100 200 120
Slow under mm/s 8-20 8-20 6-14 6-14 6-10 6-12 6-12 6-12 6-12 4-10
Return trip mm/s 52 100 47 85 70 60 100 60 120 70
Slide block speed Goes against mm 95 50 70 70 65 65 65 55 55 55
Returns mm 120 100 140 140 100 95 95 110 110 110
Table area L-R mm 460 580 720 720 1000 1000 1000 1250 1250 1200
F-B mm 460 480 580 580 700 900 900 1120 1120 1200
Overall dimensions L-R mm 1385 2000 2160 2160 2700 2825 2825 3200 3200 3200
F-B mm 920 1500 1504 1504 1700 2060 2050 2100 2100 2100
Total power kW 5.5 7.5 7.5 7.5 11 15 15 22 22 22

Item Unit Y32- 500 Y32- 500A Y32- 630 Y32- 630A Y32- 800 Y32- 800A Y32- 1000 Y32- 1000A Y32- 1250 Y32- 1600 Y32 - 2000
Nominal force kN 5000 5000 6300 6300 8000 8000 10000 10000 12500 16000 20000
Return force kN 1000 1000 1250 1250 1200 1200 1300 1300 1100 2000 2600
Ejector force kN 1000 1000 1000 1000 1000 1600 1000 1000 2000 2000 2000
Max. pressure of liquid MPa 25 25 25 25 25 25 25 25 25 25 25
Max. slide stroke mm 900 900 900 900 900 1000 900 1000 900 900 1000
Max. stroke of knock-out mm 350 350 350 350 350 350 350 400 300 450 300
Slide to work table maximum range mm 1500 1500 1500 1500 1500 1600 1500 1600 1400 1600 2500
Slide speed Quick under mm/s 120 160 120 120 120 120 120 120 120 120 120
Slow under mm/s 5-12 5-12 5-8 5-8 6-15 6-15 5-12 5-12 4-10 6-10 4-8
Return trip mm/s 80 80 60 60 110 110 100 100 120 150 120
Slide block speed Goes against mm 80 80 80 80 140 140 140 140 70 100 100
Returns mm 160 160 150 150 150 150 150 150 150 200 200
Table area L-R mm 1400 2200 1320 1600 1500 2000 1500 2000 1500 2500 2000
F-B mm 1400 1400 1200 1600 1500 1500 1500 1800 1500 1800 2000
Overall dimensions L-R mm 4060 5000 4000 4200 5100 4300 4900 4750 5250 5800 8000
F-B mm 3525 3525 2350 4200 4200 1600 3400 2650 3800 4000 3000
Total power kW 37 37 45 45 74 74 74 74 74 90 100

Rugao Yaou Company is a China-based manufacturer and supplier of 4 column hydraulic press. In addition to hydraulic press, we also produce oil drilling tools, well cement tools, hydraulic press brakes, and so on. As a result of their reliable quality, great durability and economical prices, our products are very popular in Germany, America, Kazakhstan, Turkey, India, and more.
We welcome more global customers to try our products. Thank you!
