Slipway Winch

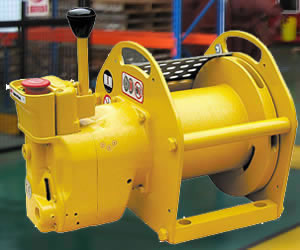

The slipway winch is widely used by the dry dock of the shipyard. This product is produced with double braking system. Additionally, the production with ratchet wheel and pawl is also available from us. This rage of product may provide the pulling force from 3 tons to 60 tons. We can offer the product with the rope length of 200m to 2000m. The fairlead is optional. It is a kind of economic and high efficient slipway winch. Moreover, we can also provide customized product according to your requirement.
Technical Parameters
| Model | JM2 | JM3 | JM5 | JM8 | JM10 | |||
| Rated Rope Pull (kg) | 2000 | 3000 | 5000 | 8000 | 10000 | |||
| Line Speed (m/min) | 12 | 10 | 10 | 8 | ||||
| Wire Rope Diameter(mm) | 15.5 | 17 | 21.5 | 26 | 30 | |||
| Reduction Box | Type | JZQ350 | JZQ350 | JZQ400 | JZQ500 | JZQ650 | ||
| Transmission Ratio | 23.34 | 31.5 | 23.34 | 31.5 | 40.17 | |||
| Drum (mm) | Diameter | 280 | 310 | 400 | 500 | 550 | ||
| Length | 480 | 510 | 730 | 910 | 1020 | |||
| Rope Length (m) | 150 | 180 | 180 | 300 | 450 | |||
| Motor | Type | YZR160M-6 | YZR160M-6 | YZR180L-8 | YZR225M-8 | YZR250M1-8 | ||
| Power(kW) | 7.5 | 7.5 | 11 | 22 | 30 | |||
| Rotating Speed(r/min) | 970 | 970 | 685 | 715 | 720 | |||
| Brake | TJ2-200 | TJ2-200 | TJ2-300 | YWZ-300 | YWZ-300 | |||
| Size(cm) | 115×100×60 | 138×106×65 | 185×135×90 | 205×275×105 | 220×180×110 | |||
| N.W.(kg) | 630 | 680 | 1200 | 2500 | 3200 | |||
| Model | JM12 | JM16 | JM20 | JM25 | JM30 | |||
| Rated Line Pull (kg) | 12000 | 16000 | 20000 | 25000 | 30000 | |||
| Line Speed (m/min) | 8 | 9 | 8.5 | |||||
| Wire Rope Diameter (mm) | 32 | 36.5 | 39 | 42 | 48 | |||
| Reduction Box | Type | JZQ650 | JZQ750 | JZQ750 | JZQ750 | JZQ850 | ||
| Transmission Ratio | 40.17 | 31.5 | 31.5 | 31.5 | 23.34 | |||
| Drum (mm) | Diameter(Φ) | 650 | 750 | 750 | 850 | 960 | ||
| Length | 1020 | 1315 | 1833 | 1932 | 1968 | |||
| Rope Length(m) | 500 | 600 | 650 | |||||
| Motor | Type | YZR250M2-8 | YZR280S-8 | YZR250M2-6 | YZR280S-6 | YZR280M-6 | ||
| Power(kW) | 37 | 45 | 45 | 55 | 75 | |||
| Rotate Speed(r/min) | 725 | 717 | 965 | 969 | 969 | |||
| Brake | YWZ-300 | YWZ-400 | YWZ-400 | YWZ-400 | YWZ-400 | |||
| Size(cm) | 250×190×120 | 390×300×245 | 400×300×170 | 412×300×200 | 450× 300× 250 | |||
| N.W.(kg) | 5500 | 7500 | 8500 | 9500 | 11000 | |||
