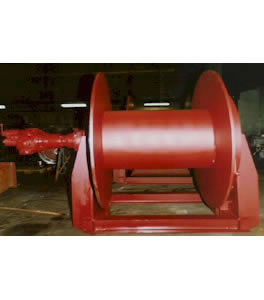

Remote-control Air Winch
The remote-control air winch is provided with light weight. It is quite easy for you to remove and install this product. The low maintenance will help you to reduce the production cost effectively. You can use this product freely without any worries. With the reliable quality, little noise is caused during operation. Due to the powerful starting torque, the lifting, lowering and stopping of the product can be conducted easily. This remote-control air winch is quite suitable for the applications in mining, construction site and the secondary platform of oil fields with inflammable and explosive hazard or in bad weather conditions such as wet, damp and other tough condition.
Technical Parameters
| Model | JQHSY5 x 48 | |
| Pressure of Compressed Air (MPa) | 0.6 - 0.7 | |
| Normal Pull Force (kN) | 5 | |
| Wire Rope Speed (m/min) | 48 | |
| Wire Rope Diameter (mm) | 8 | |
| Inlet Diameter (mm) | 20 | |
| Air Motor | Normal Power (kW) | 4 |
| Quantity of Cylinder (pcs) | 6 | |
| Cylinder Diameter(mm) | 65 | |
| Air Consumption(L/s) | 130 | |
| Drum | Quantity (piece) | 1 |
| Diameter (mm) | 175 | |
| Width (mm) | 198 | |
| Wheel Rim Diameter(mm) | 290 | |
| Rope Length (m) | 120 | |
| Size | Length (mm) | 857 |
| Width (mm) | 342 | |
| Height (mm) | 440 | |
| Weight(kg) | 128 | |
