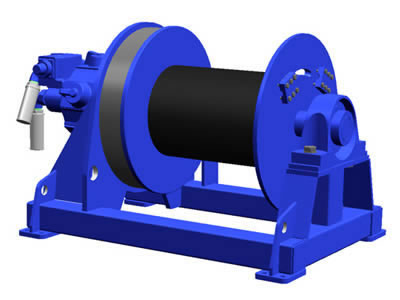

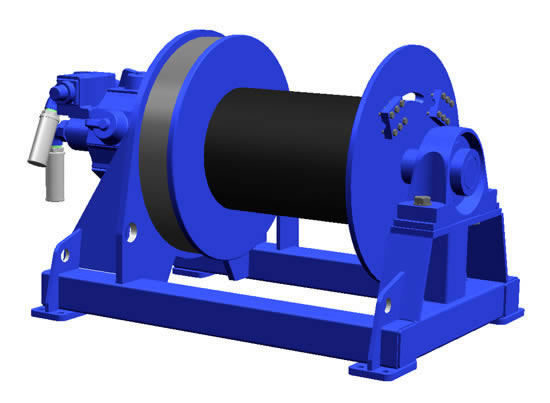

JQH-5A×48Air Winch

JQH-5A×48Air Winch

The JQH-5A×48 air winch is powered by the compressed air to drive the TMH4A piston air motor to start working. Through the deceleration on the second gear, the drum is forced to operate. The air hoist can be controlled through the hand-operated change-over valve to complete the forward rotation, backward rotation and stop motion. The braking system of this product can be activated through the operation with hand and foot. This machine is widely used by the mining, construction site and oil field.

Features
1. The small volume and the light weight of the JQH-5A×48 air winch makes for the easy transportation, and fast installation and replacement.
2. The operation of the machine is quite simple.
3. With the reliable and stable function, this product is suitable for the application in the inflammable and explosive conditions in both snowy and rainy weather.
4. The big torque realizes the forward rotation and backward rotation of the product with load.

Technical Parameters

Model JQH-5A×48
1 Pressure of Compressed Air (MPa) 0.6- 0.7
2 Rated Traction Force (kN) 5
3 Wire Rope Velocity (m/min) 48
4 Air Motor Rated Power(kW) 4
Quantity of Cylinder (piece) 6
Cylinder Diameter (mm) 65
Air Consumption (L/s) 130
5 Drum Quantity (piece) 1
Diameter(mm) 175
Width (mm) 198
Wheel Rim Diameter (mm) 290
Rope Length (m) 120
6 Wire Rope Diameter (mm) 8
7 Inlet Diameter (mm) 25
8 Size L(mm) 722
W(mm) 342
H(mm) 530
9 Weight (kg) 117
