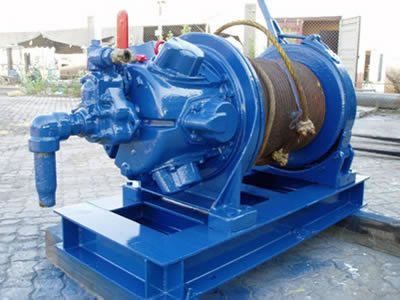

API Spec 7K Air Winch
The API Spec 7K air winch is operated with the air pressure of 72-130 PSI. Manufactured in accordance with API Spec 7K for drilling equipment, this product has the following features:
1. The product of QJ series is powered by piston-type air motor.
2. Designed with compact structure and light weight, this product is applicable for lifting, hauling and other uses at the places such as the mine, oil field, on-board operation, and some others.
3. This machine is quite easy for operation.
Technical Parameters
| Model | QJL0.5/40(A) | QJ0.5/120(A) | QJ1/120(A) | QJ3/200(B) | QJ5/120(B) | |
| Air Pressure | MPa | 0.5-0.9 | ||||
| PSI | 72-130 | |||||
| Max. Pulling Capacity | kN | 5 | 5 | 10 | 30 | 50 |
| US ton | 0.55 | 0.55 | 1.1 | 3.3 | 5.5 | |
| Max. Line Speed | m/min | 12 | 12 | 24 | 20 | 35 |
| ft/min | 39.3 | 39.3 | 78.7 | 65.6 | 114.8 | |
| Rope Length | m | 40 | 120 | 120 | 200 | 120 |
| ft | 131 | 393 | 328 | 656 | 230 | |
| Wire Rope Diameter | mm | 8 | 8 | 11 | 15.875 | 15.875 |
| in | 5 / 16 | 5 / 16 | 7 / 16 | 5 / 8 | 5 / 8 | |
| Size | mm | 495×365×380 | 675×343×460 | 825×343×450 | 1340×940×985 | 1300×940×985 |
| inch | 19.5×14.3×15 | 27×13.5×18 | 32.5×13.5×18 | 53×37×39 | 51×37×39 | |
| Weight | kg | 45 | 117 | 162 | 600 | 580 |
| lb | 100 | 258 | 358 | 1320 | 1280 | |
