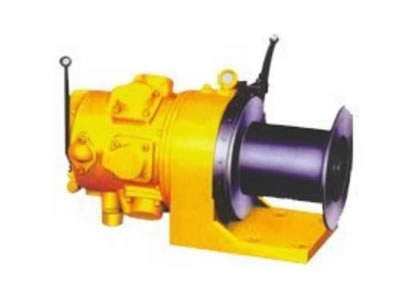

FQ Series Air Winch

FQ Series Air Winch

This FQ series air winch is powered by air motor. This product is provided in small size and light weight, which will save the cost for transportation and installation. Since no scintilla is caused during operation, this product is quite safe for use. This product is very popular for mining, shipping industry and chemical industrial.

Technical Parameters

Model Lifting Weight (kg) Lifting Speed (m/min) Steel Wire Rope Specification and Length Air Pressure (MPa)
FQ1*15 100 15 6*(18*7)*50 0.5 - 0.7
FQ2*15 200 15 6*(18*7)*50 0.5 - 0.7
FQ3*15 300 15 8*(18*7)*40 0.5 - 0.7
FQ5*24 500 24 10*(18*7)*50 0.5 - 0.7
FQ9*12 900 12 10*(18*7)*50 0.5 - 0.7
FQ10*24 1000 24 16*(18*7)*100 0.5 - 0.7
FQ20*24 2000 24 18*(18*7)*150 0.5 - 0.7
FQ30*24 3000 24 19*(18*7)*300 0.5 - 0.7
FQ50*12 5000 12 24*(18*7)*200 0.5 - 0.7
