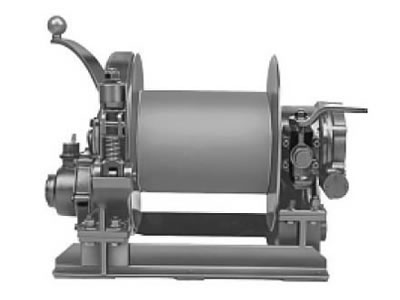

JDN Air Winch
The JDN air winch is made of steel structure. Therefore, this product is quite durable for use. It can be used in the areas with high risk of explosion. Additionally, this machine can work continuously.
Features
1. The drum integrated exhaust air cooled planetary gear provides a minimum maintenance and the maximum reliability.
2. 100% duty circle.
3. The machine can operate with variable speed. Meanwhile, during operation, the noise caused is low.
4. This product has been approved by ATEX.
5. This machine can be provided in various types to meet different requirements of the customers.
6. The rope provided with this JDN air winch is longer.
Technical Parameters
| TYPE | PROFI LIFTER 1200-2.2 | PROFI LIFTER 2000-2.6 | PROFI LIFTER 1800 -2.2 | PROFI LIFTER 3000-2.6 |
| Normal Pressure(Bar) | 6 | 6 | 6 | 6 |
| Lifting Capacity (kg) | 1200 | 200 | ||
| Pulling Capacity (kg) | 1800 | 3000 | ||
| Max. Numbers of Rope Layers | 4 | 4 | 4 | 4 |
| Max. Motor Power(kW) | 2.2 | 2.6 | 2.2 | 2.6 |
| Lifting/Pulling Speed without Load(m/min) | 18.5 | 13 | 18.5 | 13 |
| Lifting/Pulling Speed with Max. Load(m/min) | 11.6 | 8 | 7 | 4.6 |
| Lowering Speed without Load(m/min) | 16.2 | 12.5 | 16.2 | 12.5 |
| Lowering Speed with Max. Load(m/min) | 22.5 | 16.8 | ||
| Air Consumption for Pulling with Max. Load (m³/min) | 3.4 | 4 | ||
| Air Consumption for Lifting with Max. Load (m³/min) | 3.9 | 4.5 | ||
| Hose Size(mm) | 19 | 25 | 19 | 25 |
| Rope Drum Diameter (mm) | 240 | 285 | 240 | 285 |
| Weight of the Long-pattern Rope Drum without Rope(kg) | 158 | 310 | 158 | 310 |
| Weight of the Short-pattern Rope Drum without Rope(kg) | 138 | 235 | 138 | 235 |
| Control Distance of Pendant (m) | 2 | 2 | 2 | 2 |
| Noise Caused by Lifting/Pulling (dB) | 88 | 87 | 88 | 87 |
| Noise caused by Lowering without Load(dB) | 90 | 88 | 90 | 88 |
| Noise Caused by lifting/Pulling with Full Load (dB) | 86 | 85 | 82 | 80 |
| Noise Caused by Lowering with Full Load(dB) | 92 | 88 |
