Shale Shaker
Shale Shaker

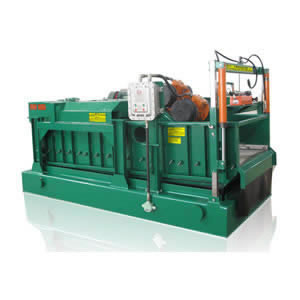

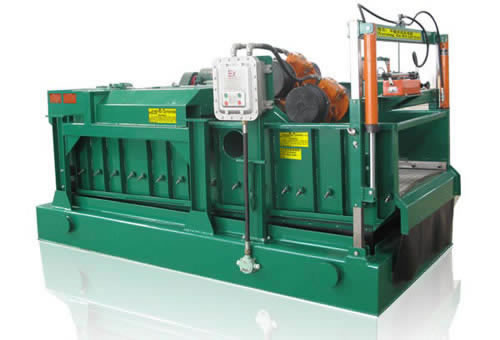

Our shale shaker, a piece of solid control equipment, is widely used for the first phase purification of drilling liquid in petroleum exploration and exploitation operations.
The relative position between the vibrator rotation center and the shaker basket centroid results in a special vibration track that ensures good screening efficiency, quick disposal and long screen life.
We provide three types of shale shakers, which are S230-3, S230-3×2 and 230-3×3. These products are suitable for all kinds of China-made drilling rigs and drilling liquid circulation systems.
Specifications of Shale Shaker
| Model | S230-3 | S230-3X2 | S230-3X3 |
| Amplitude | A≥2 mm | ||
| Rotating Speed of Exciting Vibrator(rpm) | 1068, 1252 with double-speed pulley | ||
| Projective Index | G=4.8 when n=1068 r/min G=5.9 when n=1252 r/min | ||
| G Force P | P=33 kN when n=1068 r/min P=41 kN when n=1252 r/min | ||
| Area of Single Screen(㎡) | 2.3 | 4.6 | 6.9 |
| Screen Angle | 1st 0°,2nd 5°, Screen API 20, 40, 60, 80,100 Mesh | ||
| Handling Capacity of Single Screen | Q≥501/s when drilling liquid clone velocity≤40 Second | ||
| Motor | Model Y112M-4, Rotation Rate 1440rpm,Power 4kW | ||
| Overall Dimension(mm) | 2900x1850x1320 | 4200x2675x1340 | 4200x2675x1340 |
| Weight(Kg) | 1588 | 3323 | 4570 |
As a professional solid control equipment manufacturer and supplier in China, Rugao Yaou Company can provide quality shale shakers, mud agitators and desanders at economical prices. As a result of our high product quality and considerate service, our oil drilling equipment has gained an increasing popularity in United Arab Emirates, America, India, Brazil, Russia, just to name a few. To further suit customers' different needs, we also produce well cement tools, workover tools, wellhead control equipment, and more.
We are looking forward to serving more global customers. Please contact us for further information.
-
