Desander
Desander

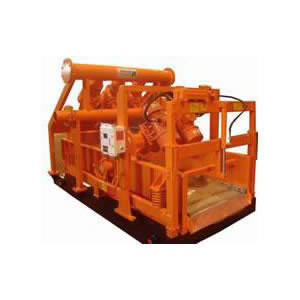

Our desander, a kind of solid control equipment, is a combination of cyclone desander and shale shaker of drilling fluid. The hydrocyclone is made from high chromium cast iron for good rigidity.
The desander is designed on the basis of particle setting principle. The separated medium-drilling liquid enters along the inner wall of clone spirally, depending on the pressure and speed produced by sand pump. Under the function of centrifugal force and gravity, the larger particles are sunk along the inner wall of clone spirally and drained from bottom outlet to be separated in shale shaker with smaller mesh. Other mediums are ascending along clone spirally to enter the third–class separation device from overflow outlet for further purification.
Specifications of Desander
| Hydrocyclone Diameter | 250mm |
| Hydrocyclone Number | 2 |
| Admission Manifold Diameter | 150mm |
| Overflow Manifold Diameter | 200mm |
| Separated Particles Diameter | 40-74μm |
| Working Pressure | 0.25-0.4Mpa |
| Capacity | 28-54L/S |
| Vibration Motor Power | 0.75kw |
| Effective Screen Area | 1500×600mm² |
| Dimension | 1460×1130×2100mm |
Rugao Yaou Company is a desander manufacturer and supplier in China. We specialize in the production of solid control equipment, well cement tools, oil production tools, and other oil drilling equipment. Through our expertise and many years of experience, we have been awarded the certificate of the American Petroleum Institute (API).
Thanks for visiting our website. For more information, please feel free to contact us.
-
