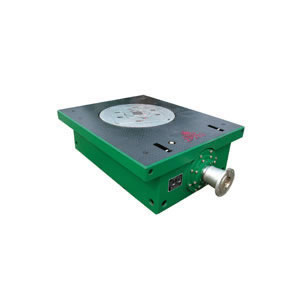

Drilling Rotary Table
Drilling Rotary Table
Built on API 7K, with the certificate of authority to use the official API monogram. Our drilling rotary table conforms to the requirements of the industry standard SY/T5531. It uses spiral bevel gear drive, and has the features of high loading capacity, smooth running and long service life.
The casing is a cast and welded structure, with better rigidity and higher precision. The gears and bearings adopt splash lubrication, simple and reliable. The input shaft is of cylindrical structure, convenient for maintenance.
Specifications of Drilling Rotary Table
| Model | ZP175 | ZP205 | ZP275 | ZP375 |
| Opening dia. mm(in) | 444.5(17 1/2) | 520.7 (20 1/2) | 698.5(27 1/2) | 952.5(37 1/2) |
| Static load rating (kN) | 2700 | 3150 | 4500 | 5850 |
| Max. working torque N.m | 13729 | 22555 | 27459 | 32362 |
| Distance between rotary center and the teeth center of inner sprocket mm(in) | 1118 (44) | 1353 (53 1/4) | 1353 (53 1/4) | 1353 (53 1/4) |
| Gear ratio | 3.75 | 3.22 | 3.67 | 3.56 |
| Max. speed r/min | 300 | 300 | 300 | 300 |
| Height of input shaft centerline mm | 260.4 | 318 | 330 | 330 |
| Overall dimensions (L×W×H) mm | 1972×1372×564 | 2266×1475×704 | 2392×1670×685 | 2457×1810×718 |
Rugao Yaou Company is a professional drilling rotary table manufacturer in China. Since our foundation in 2004, we have been committed to providing high quality oil drilling equipment at competitive prices. Our primary products include drilling rig parts, well cement tools, workover tools, oil production tools, and more. Thanks to their reliable performance, reasonable prices and long lifespan, our products are extensively used in Russia, Germany, the United States, Australia, Brazil, just to name a few.
Want to know more detailed information? Please contact us directly.
-
