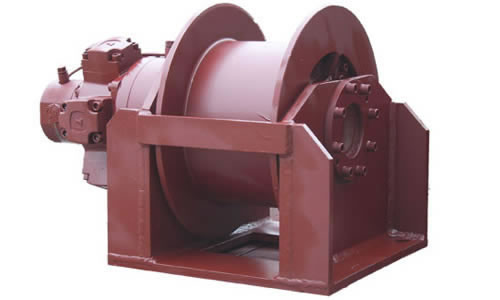

High-performance Hydraulic Winch
This high-performance hydraulic winch is well received by the customers from the Middle East due to its good quality and the competitive price. It is powered by compressed air to activate the air hoist to start working. Through the deceleration of the second gear, the drum is actuated to operation. The forward rotation, backward rotation and the stop of the machine can be realized through the manual-operated conversion valve. Besides the braking system controlled by foot, the manual control braking system is also available for this product. This high-performance hydraulic winch is suitable for the applications in the mines, constructions sites and onshore oil filed for drilling.
Technical Parameters
| Model | JQH-5A×48 | ||
| 1 | Pressure of Compressed Air(MPa) | 0.6 - 0.7 | |
| 2 | Rated Traction Force(kN) | 5 | |
| 3 | Wire Rope Velocity(m/min) | 48 | |
| 4 | Air Motor | Rated Power(kW) | 4 |
| Quantity of Cylinder(pcs) | 6 | ||
| Cylinder Diameter(mm) | 65 | ||
| Air Consumption(L/s) | 130 | ||
| 5 | Drum | Quantity(pcs) | 1 |
| Diameter(mm) | 175 | ||
| Width(mm) | 198 | ||
| Wheel Rim Diameter(mm) | 290 | ||
| Rope Length(m) | 120 | ||
| 6 | Wire Rope Diameter(mm) | 8 | |
| 7 | Inlet Diameter(mm) | 25 | |
| 8 | Size | L(mm) | 722 |
| W(mm) | 342 | ||
| H(mm) | 530 | ||
| 9 | Weight (kg) | 117 | |
