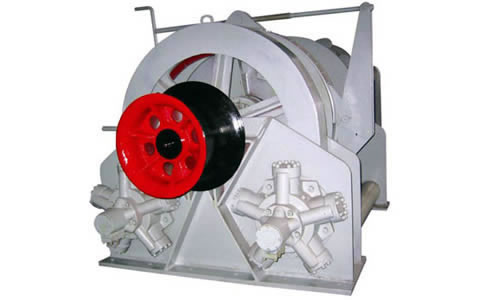

YJ Hydraulic Winch
The YJ hydraulic winch is produced according to API Spec 7K for drilling equipment. The compact structure and the light weight makes for the easy operation of the product. With stable lifting performance, this product is very popular with our customers for lifting heavy objects in the places such as mines, ports and building construction site.
Technical Parameters
| Model | YJ-3 | YJ-5 | |
| Rated Flow of Hydraulic System | L/min | 120 | 120 |
| gpm | 31.7 | 31.7 | |
| Rate Pressure of Hydraulic System | MPa | 16.6 | 16.6 |
| PSI | 2400 | 2400 | |
| Rated Line Pull | kN | 30 | 50 |
| Us ton | 3.3 | 5.5 | |
| Line Speed | m/min | 27 | 11 |
| ft/min | 89 | 36 | |
| Rope Diameter | mm | 15.5 | 20.5 |
| inch | 0.61 | 0.81 | |
| Rope Length | m | 150 | 100 |
| ft | 492 | 328 | |
| Overall Dimensions | mm | 690×480×440 | 880×520×710 |
| inch | 27×19×18 | 35×21×28 | |
| Weight | kg | 230 | 490 |
| Ib | 507 | 1080 | |
