Variable Speed Hydraulic Winch

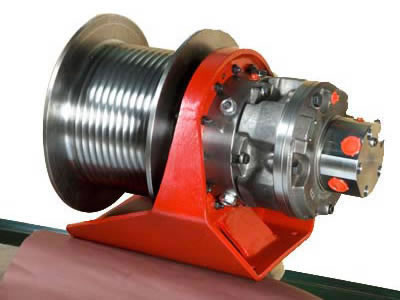

The variable speed hydraulic winch can run smoothly within the range of speed. Particularly, this product can be installed reversibly. Being high efficient, the torque motor can operate continuously. There is a mechanical lock designed for this product. The stainless steel tie bars makes for the good quality of the product. With the rotating ring gear, the free spooling clutch can wind up automatically and the rapid wire rope release is realized.
Specifications
| Model | KHD-10 |
| Line Pull | 756kg/1, 667lb (High) |
| 4,535kg/10,000lb (Low) | |
| Operating Pressure | 175bar/2537PSI |
| Max. Oil Flow | 15.9g/min( 60L/min) |
| Gear Ratio | Free |
| 1:1 (High) | |
| 1:6 (Low) | |
| Wire Rope Size | Φ9.5mm×27.4m(Φ3/8"×90') |
| Drum Size | Φ63.5mm×215mm(Φ2.5"×8.4") |
| Gear Train | Planetary |
| Winch weight | 27.5kg /60.6lb |
Line Pull and Line Speed
| KHD-10 | ||||||
| Layer of Wire Rope | 1 | 2 | 3 | 4 | 5 | |
| Max. Line Pull (1:1) | lb | 1,667 | 1,389 | 1,212 | 1,058 | 992 |
| kg | 756 | 630 | 550 | 480 | 450 | |
| Max. Line Pull (1:6 ) | lb | 10,000 | 8,320 | 7,120 | 6,200 | 5,500 |
| kg | 4,535 | 3,770 | 3,330 | 2,812 | 2,490 | |
| Line Speed (1:1) | FPM | 134.5 | 161 | 183.7 | 209 | 223 |
| MPM | 41 | 49 | 56 | 64 | 68 | |
| Line Speed (1:6) | FPM | 21.3 | 26.2 | 30.5 | 36.1 | 37 |
| MPM | 6.5 | 8 | 9.3 | 11 | 11.3 | |
Note: the product shall be used under the conditions that the Max. line pull needed no more than 10,000lb, pressure no more than 175bar and oil flow no more than 30L/min.
