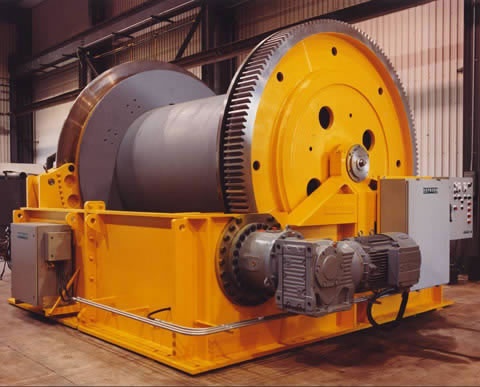

Steel Rope Shaft Sinking Winch
Technical Parameters
| Model | JZ-10/800 | JZ-16/1000 | JZ-16/1600 | JZ-25/1320 | JZ-25/1600 | JZ-40/1800 |
| Max. Static Tension of the Steel Rope (kN) | 100 | 160 | 160 | 250 | 250 | 400 |
| Rope Length (m) | 800 | 1000 | 1600 | 1320 | 1600 | 1800 |
| Fast Speed of the First Layer (m/s) | 0.075 | 0.075 | 0.075 | 0.075 | 0.075 | 0.075 |
| Slow Speed of the First Layer (m/s) | 0.038 | 0.038 | 0.038 | 0.038 | 0.038 | 0.038 |
| Number of layer | 7 | 8 | 10 | 10 | 10 | 11 |
| Steel Rope Diameter (mm) | 32 | 40 | 40 | 52 | 52 | 60 |
| Drum Diameter (mm) | 800 | 1000 | 1050 | 1050 | 1250 | 1000 |
| Drum Width (mm) | 1250 | 1415 | 1500 | 1768 | 1758 | 1520 |
| Center Height of Drum (mm) | 800 | 1050 | 1300 | 1300 | 1595 | 1050 |
| Reduction Ratio (fast speed) | 65.63 | 75.86 | 75.86 | 77.49 | 75.86 | 75.86 |
| Reduction Ratio (slow speed) | 126.19 | 152.78 | 152.78 | 157.14 | 152.78 | 152.78 |
| Total Reduction Ratio (fast speed) | 401.04 | 499.09 | 531.03 | 577.7 | 499.09 | 499.09 |
| Total Reduction Ratio (slow speed) | 771.64 | 1005.12 | 1069.44 | 1164.7 | 1005.12 | 1005.12 |
| Motor Type | Y225M-8 | YZR250M2-8 | YZR280S-8 | YZR280S-8 | YZR315M-10 | YZR250M2-8 |
| Motor Power (kW) | 22 | 37 | 45 | 45 | 75 | 37 |
| Motor Rotate speed (r/m) | 740 | 720 | 717 | 717 | 579 | 720 |
| Motor Voltage (V) | 380 | 380 | 380 | 380 | 380 | 380 |
| Dimension (mm) (L×W×H) | 3283×2570× 1770 | 3650×3200× 2240 | 3827×3623× 2500 | 4062×3623× 2500 | 4625×4242× 3166 | 3920×3200× 2240 |
| Total Weight (kg) (excluding steel rope and electric control box) | 7000 | 12680 | 14400 | 16035 | 17100 | 27000 |
