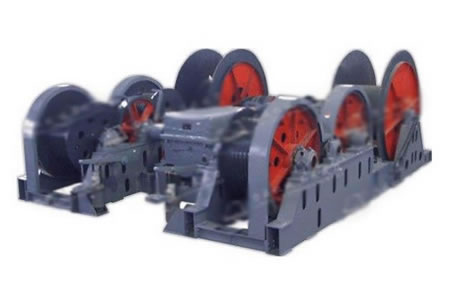

JZM Series Shaft-Sinking Winch
The JZM series shaft-sinking winch is a well received product offered by our company. It can be used for hanging scaffold, water pump, water pipe, cement pipe, air duct at coal mine, metal mine, non-metallic mine, among others.
Technical Parameters
| Model | Wire Cable | Speed (m/s) | Drum Capacity | Necessary Electrical Machinery | Overall Dimension | Weight(without the electrical machinery or electric control (kg) | Note | |||||
| L×W×H (mm) | ||||||||||||
| Operation Mode | Quantity of Rope | Pulling Force (kN) | Dia. (mm) | Fast | Slow | Model | Power (kW) | |||||
| JZM-25/800 | Friction Drive | 1 | 250 | 52 | 0.1 | 0.05 | 800 | YZR280M-8 | 55 | 6368×3102×2290 | 19652 | 380V |
| 2JZM-25/800 | Friction Drive | 2 | 250 | 52 | / | 0.05 | 800 | YZR280M-6 | 75 | 6368×5612×2290 | 37000 | 380V |
| 2JZM-25/1350 | Friction Drive | 2 | 250 | 52 | / | 0.05 | 1350 | YZR280M-6 | 75 | 6730×5612×2470 | 38200 | 380V |
| JZM-40/1350 | Friction Drive | 1 | 400 | 60.5 | 0.1 | 0.05 | 1350 | YZR315S-8 | 75 | 7660×3790×2850 | 37000 | 380V |
