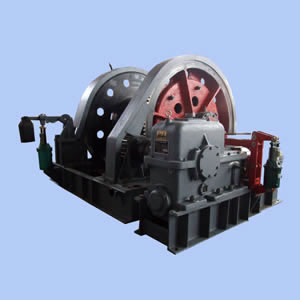

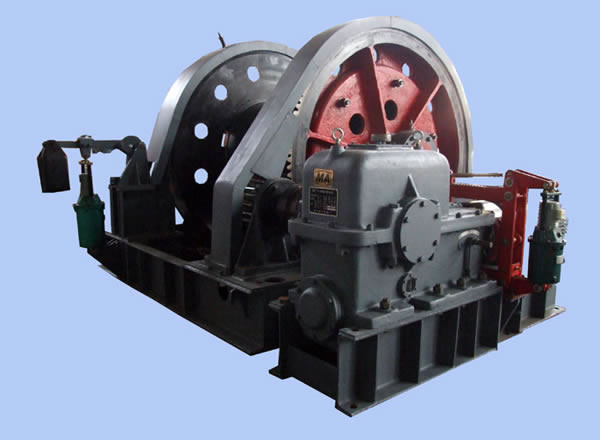

Two Speed Shaft Sinking Winch
The two speed shaft sinking winch can operate with fast speed. It is the upgrade of the product of JZ10/600 series. The starting of the machine can be conducted frequently. This product can be used at the places such as the coal mine, metal and non-metallic mine to hoist the grab bucket or hang heavy object. The application on ground is also available with this machine. Capable of running reversibly, the duty cycle shall be less than 40%.
Technical Parameters
| Max. Static Tension of the Steel Rope (kN) | 100 | 100 |
| Average Speed of Steel Rope (m/s) | Fast Speed: 0.34 Slow Speed:0.13 | Fast Speed: 0.34 Slow Speed: 0.13 |
| Drum Capacity (m) | 700 | 950 |
| Drum Width (mm) | 1050 | 1350 |
| Drum Diameter (mm) | 800 | 800 |
| Steel Rope Type | D-6X19+131 | D-6X19+131 |
| Layer Number of Steel Rope | 7 | 7 |
| Transmission Ratio | Total Transmission Ratio | Exposed gear ratio | Reduction Ratio |
| 87.4/215.3 | 6.11 | 14.3/35.24 |
| Motor Type | YZR280M-10 | YZR280M-10 |
| Motor Power (kW) | 45 | 45 |
| Motor Rotate Speed (r/min) | 580 | 580 |
| Dimension (L×W×H) (mm ) | 3240×2907×1740 | 3240×3222×1740 |
| Total Weight (kg) | 8617 | 8907 |
