Shock Absorber
Shock Absorber

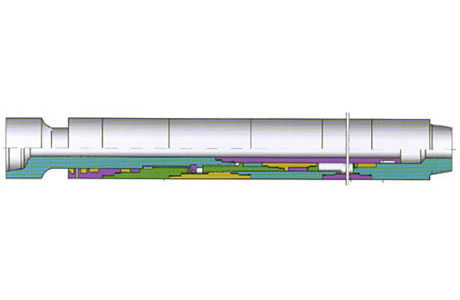

Our double way shock absorber is a kind of oil drilling equipment used for simultaneously slowing down or eliminating the vertical or horizontal shock from drill string. It can greatly reduce the damage (caused by shock) to drill bit, drilling tool and surface drilling tool, and thus increase drilling speed and save drilling cost.
Specifications of Shock Absorber
| Type | O.D. (mm) | I.D. (mm) | Max. stroke (mm) | Ambient temperature (°c) | Max. torque (KN.m) | Max. bit weight (KN) | Tensile load (KN) | Pull-down overall length (mm) | Thread conn. |
| SJ121B | 121 | 38 | 120 | -40~150 | 10 | 200 | 1000 | 5300 | 3 1/2"REG |
| SJ160B | 160 | 45 | 120 | -40~150 | 15 | 340 | 1500 | 5252 | NC46 |
| SJ178B | 178 | 57 | 120 | -40~150 | 15 | 400 | 1500 | 5350 | NC50 |
| SJ203B | 203 | 64 | 120 | -40~150 | 20 | 480 | 1960 | 5853 | 6 5/8"REG |
| SJ229B | 229 | 71 | 120 | -40~150 | 20 | 540 | 1960 | 5900 | 7 5/8"REG |
Rugao Yaou Company is a professional shock absorber manufacturer in China. We have specialized in producing oil drilling equipment for many years. To date, we have earned the certificate of the American Petroleum Institute (API), and our quality oil drilling, oil production tools are in increasing demand by customers around the world.
If you want to know more information about our products, please feel free to contact us.
-
- Cross Over Sub
Our cross over sub is designed for connection of drill stem component, which is suitable for petroleum, natural gas and geology drilling work.
-
- Kelly Cock Valve
Our kelly cock valve is the oil drilling equipment used to prevent blowout. The kelly cock contains upper kelly cock and lower kelly cock. The former is connected between lower end of swivel and upper end of kelly, while the later is connected between upper end of drill pipe and lower end of kelly ...
