Heavy Weight Drill Pipe
Heavy Weight Drill Pipe

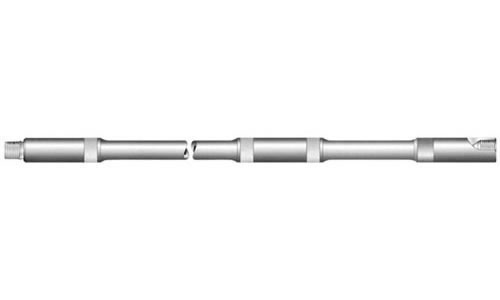

Our heavy weight drill pipe, a type of oil drilling equipment, is produced in accordance with API Spec7-1 Standard. Its wall thickness is between drill pipe and drill collar, and its structure is similar to drill pipe. Our heavy weight drill pipe is made from high quality alloyed steel for good durability. Its tool joints and middle upset are welded hardbands.
Specifications of Heavy Weight Drill Pipe
| Size | O.D. | I.D. | Tool Joint O.D. | Tool Joint I.D. | Thread type | Max. elevator diameter | Central upset dia. | Min drift dia. size |
| 3 1/2 | 3 1/2 | 2 1/4 | 4 3/4 (4 7/8, 5) | 2 1/4 | NC38 | 3 7/8 | 4 | 2 |
| 2 1/16 | 2 1/16 | 2 13/16 | ||||||
| 4 | 4 | 2 1/2 | 5 1/4 | 2 1/2 | NC40 | 4 3/16 | 4 1/2 | 2 1/4 |
| 2 9/16 | 2 9/16 | 2 5/16 | ||||||
| 4 1/2 | 4 1/2 | 2 11/16 | 6 1/4 | 2 11/16 | NC46 | 4 11/16 | 5 | 2 17/16 |
| 2 3/4 | 2 3/4 | 2 1/2 | ||||||
| 2 13/16 | 2 13/16 | 2 9/16 | ||||||
| 5 | 5 | 3 | 6 5/8 | 3 | NC 50 | 5 1/8 | 5 1/2 | 2 3/4 |
| 5 1/2 | 5 1/2 | 3 1/4 | 7 (7 1/4, 7 1/2) | 3 1/4 | 5 1/2FH | 5 11/16 | 6 | 3 |
| 3 3/8 | 3 3/8 | 3 1/8 | ||||||
| 3 7/8 | 3 7/8 | 3 5/8 | ||||||
| 4 | 4 | 3 3/4 | ||||||
| 6 5/8 | 6 5/8 | 4 | 8 (8 1/4, 8 1/2) | 4 | 6 5/8FH | 6 15/16 | 7 1/8 | 3 3/4 |
| 4 1/2 | 4 1/2 | 4 1/4 | ||||||
| 5 | 5 | 4 3/4 |
Rugao Yaou Company is a China heavy weight drill pipe manufacturer and supplier. Some of our specialized products include petroleum equipment, rolling machines, hydraulic presses, and so on. We are located in Rugao, Jiangsu, near the Yangtze River, Yellow Sea, and Shanghai city. So we have access to shipping methods of sea, land and air, which allow us to conveniently and cheaply transport our products.
Would you want to buy quality oil drilling equipment at competitive prices? Don't hesitate, please call us immediately!
-
