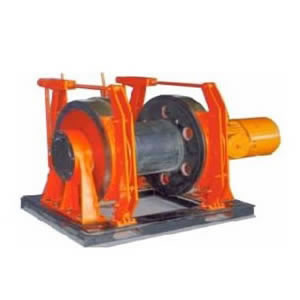

JD Series Mine Winch
This JD series mine winch is driven by the planetary gear. Besides the high work efficiency, the machine can be started smoothly. The flexible operation, reliable braking system and the low noise make the JD series mine winch quite popular with our customers. Being a flame-proof product, this product is applicable for on-land hauling, tramcar scheduling, and other material transportation.
The JH series mine winch is manufactured with spherical worm drive in compact structure and small size. The structure of the product is symmetrical arranged in the shape of rectangle. With the smooth and solid base, this product is suitable for the underground applications. Since the center of gravity is lower, it is applicable to install the anchor for this product to obtain the smooth, safe and reliable operation.
Specifications
| Model | JD-1(JD-11.4) | JD-1.6(JD- 25) | JD-2.5(JD-40) | JD- 3(JD-45) |
| Rated Line Pull (kN) | 10 | 16 | 25 | 30 |
| Line Speed (m/s) | 0.43-1.03 | 0.6-1.2 | 1.115-1.632 | 1.115-1.632 |
| Rope Specifications (Dia.×L) | Φ12mm×400m | Φ16mm×400m | Φ20mm×650m | Φ20mm×650m |
| Motor Power (kW) | 11.4 | 25 | 40 | 45 |
| Overall Dimensions (mm) | 1100×765×730 | 1350×1140×1190 | 1900×2350×1370 | 1900×2350×1370 |
| Weight (kg) | 550 | 1460 | 2800 | 2800 |
-
