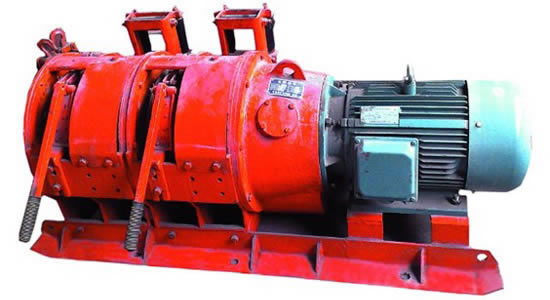

JH Series Mine Winch
The JH series mine winch is specially designed for towing heavy object horizontally for mining. This product is manufactured based on the analysis of the structure and the characteristic of the existing product. This product is specially designed for the applications in mining and architecture industry.
This range of product can be divided into scheduling series, goods transportation series, scraper conveyor series, DOO rock loader series, etc.
Technical Parameters
Model | JH-5 | JH-8 | JH-14 | JH-20 | JH-30 |
Hauling Capacity(kN) | 50 | 80 | 140 | 200 | 300 |
Line Speed (m/s) | 0.17 | 0.09 | 0.094 | 0.1 | 0.13 |
Rope Diameter (mm) | 16 | 17 | 22 | 26 | 31 |
Rope Length (m) | 80 | 100 | 130 | 170 | 220 |
Motor Power (kW) | 7.5 | 11 | 18.5 | 22 | 45 |
Overall Dimensions (mm) | 1450×512×515 | 1600×530×670 | 2050×680×915 | 2200×968 ×864 | 3300×1075×1034 |
Weight (kg) | 630 | 630 | 1350 | 2500 | 4460 |
