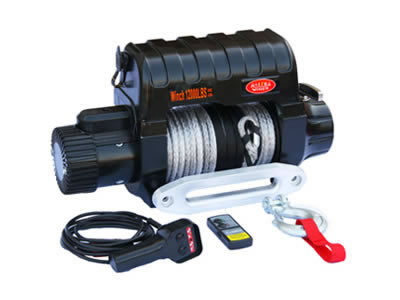

Nylon Rope Winch
The accessories for the waterproof nylon rope winch include the mounting plate and the wireless remote control.
Technical Parameters
| Rated Line Pull | 12000lb (5443kg), single line |
| Motor | 12V 5.5hp/4.0kW24V 5.98hp/4.46kW series wound |
| Control | Remote switch, 12ft(3.7m)lead |
| Gear Train | 3-stage planetary |
| Gear Reduction Ratio | 265:1 |
| Clutch | Sliding ring gear |
| Braking Action | Automatic in-the-drum |
| Drum Size | Φ2.5"(64mm)×10.0"(253mm) |
| Cable | Φ9.1mm×28m |
| Fairlead | 4-way roller fairlead |
| Remote Control | Included |
| Battery | Recommended: minimum 650CCA for winching |
| Battery Leads | 2 gauge,72"(183mm) |
| Finish | Dark gray powder coat |
| Overall Dimensions | 21.4"×5.9"×8.58"(544mm×150mm×218mm) |
| Mounting Bolt Pattern | 254mm×114.3mm |
| Weight | N.W.:38kg G.W.:40kg |
| Packing Size | 57×19×34.5cm 1pc/CTN |
