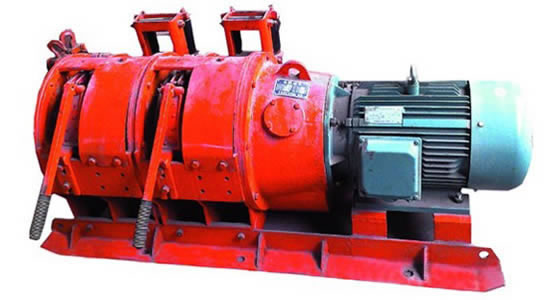

JH Series Prop Drawing Winch
The JH series prop drawing winch is designed based on the analysis on the structure and the characteristic of the existing product. It is specially manufactured for the applications in mines and construction industry for towing heavy object horizontally. The product can be classified into scheduling series, goods transportation series, scraper conveyor series, DOO rock loader series, etc.
Technical Parameters
| Model | JH-5 | JH-8 | JH-14 | JH-20 | JH-30 |
| Hauling Capacity (kN) | 50 | 80 | 140 | 200 | 300 |
| Rope Speed (m/s) | 0.17 | 0.09 | 0.094 | 0.1 | 0.13 |
| Rope Diameter (mm) | 16 | 17 | 22 | 26 | 31 |
| Rope Length (m) | 80 | 100 | 130 | 170 | 220 |
| Motor Power (kW) | 7.5 | 11 | 18.5 | 22 | 45 |
| Overall Size (mm) | 1450×512×515 | 1600×530×670 | 2050×680×915 | 2200×968×864 | 3300×1075×1034 |
| Weight (kg) | 630 | 630 | 1350 | 2500 | 4460 |
